Spark学习之6：Broadcast及RDD cache_spark broadcast rdd 数据

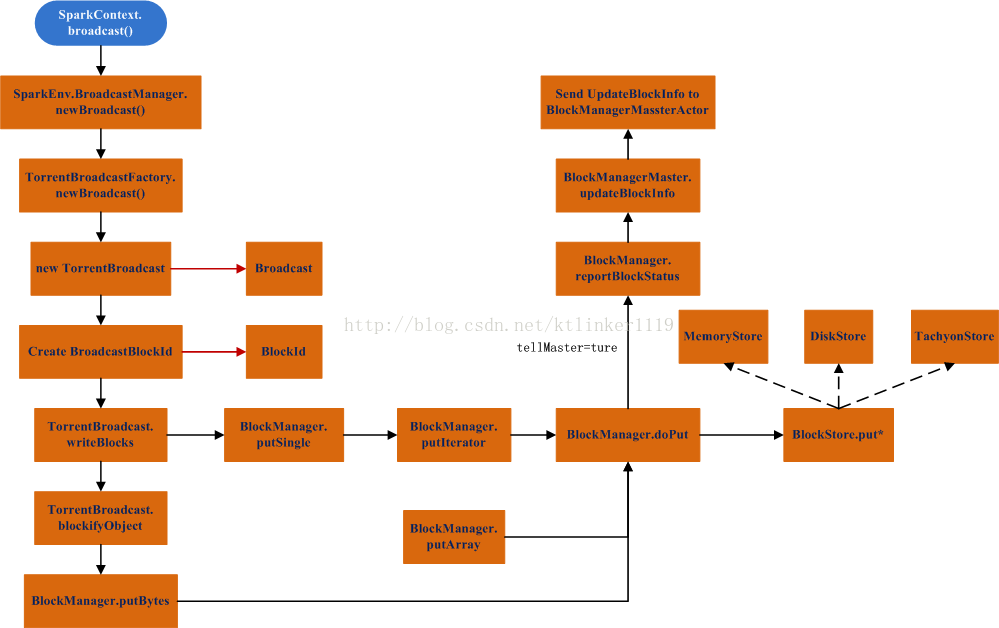

  private def writeBlocks(value: T): Int = {
    // Store a copy of the broadcast variable in the driver so that tasks run on the driver
    // do not create a duplicate copy of the broadcast variable's value.
    SparkEnv.get.blockManager.putSingle(broadcastId, value, StorageLevel.MEMORY_AND_DISK,
      tellMaster = false)
    val blocks =
      TorrentBroadcast.blockifyObject(value, blockSize, SparkEnv.get.serializer, compressionCodec)
    blocks.zipWithIndex.foreach { case (block, i) =>
      SparkEnv.get.blockManager.putBytes(
        BroadcastBlockId(id, "piece" + i),
        block,
        StorageLevel.MEMORY_AND_DISK_SER,
        tellMaster = true)
    }
    blocks.length
  }

  // Mapping from block manager id to the block manager's information.
  private val blockManagerInfo = new mutable.HashMap[BlockManagerId, BlockManagerInfo]

  ......

  // Mapping from block id to the set of block managers that have the block.
  private val blockLocations = new JHashMap[BlockId, mutable.HashSet[BlockManagerId]]

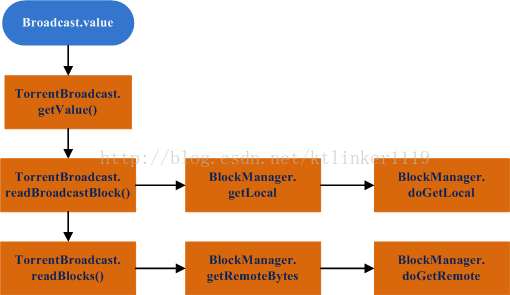

  override protected def getValue() = {
    _value
  }

1.2.2 TorrentBroadcast.readBroadcastBlock

    TorrentBroadcast.synchronized {
      setConf(SparkEnv.get.conf)
      SparkEnv.get.blockManager.getLocal(broadcastId).map(_.data.next()) match {
        case Some(x) =>
          x.asInstanceOf[T]

        case None =>
          logInfo("Started reading broadcast variable " + id)
          val startTimeMs = System.currentTimeMillis()
          val blocks = readBlocks()
          logInfo("Reading broadcast variable " + id + " took" + Utils.getUsedTimeMs(startTimeMs))

          val obj = TorrentBroadcast.unBlockifyObject[T](
            blocks, SparkEnv.get.serializer, compressionCodec)
          // Store the merged copy in BlockManager so other tasks on this executor don't
          // need to re-fetch it.
          SparkEnv.get.blockManager.putSingle(
            broadcastId, obj, StorageLevel.MEMORY_AND_DISK, tellMaster = false)
          obj
      }
    }

    // Fetch chunks of data. Note that all these chunks are stored in the BlockManager and reported
    // to the driver, so other executors can pull these chunks from this executor as well.
    val blocks = new Array[ByteBuffer](numBlocks)
    val bm = SparkEnv.get.blockManager

    for (pid <- Random.shuffle(Seq.range(0, numBlocks))) {
      val pieceId = BroadcastBlockId(id, "piece" + pid)
      logDebug(s"Reading piece $pieceId of $broadcastId")
      // First try getLocalBytes because there is a chance that previous attempts to fetch the
      // broadcast blocks have already fetched some of the blocks. In that case, some blocks
      // would be available locally (on this executor).
      def getLocal: Option[ByteBuffer] = bm.getLocalBytes(pieceId)
      def getRemote: Option[ByteBuffer] = bm.getRemoteBytes(pieceId).map { block =>
        // If we found the block from remote executors/driver's BlockManager, put the block
        // in this executor's BlockManager.
        SparkEnv.get.blockManager.putBytes(
          pieceId,
          block,
          StorageLevel.MEMORY_AND_DISK_SER,
          tellMaster = true)
        block
      }
      val block: ByteBuffer = getLocal.orElse(getRemote).getOrElse(
        throw new SparkException(s"Failed to get $pieceId of $broadcastId"))
      blocks(pid) = block
    }
    blocks

  private def doGetRemote(blockId: BlockId, asBlockResult: Boolean): Option[Any] = {
    require(blockId != null, "BlockId is null")
    val locations = Random.shuffle(master.getLocations(blockId))
    for (loc <- locations) {
      logDebug(s"Getting remote block $blockId from $loc")
      val data = blockTransferService.fetchBlockSync(
        loc.host, loc.port, loc.executorId, blockId.toString).nioByteBuffer()

      if (data != null) {
        if (asBlockResult) {
          return Some(new BlockResult(
            dataDeserialize(blockId, data),
            DataReadMethod.Network,
            data.limit()))
        } else {
          return Some(data)
        }
      }
      logDebug(s"The value of block $blockId is null")
    }
    logDebug(s"Block $blockId not found")
    None
  }

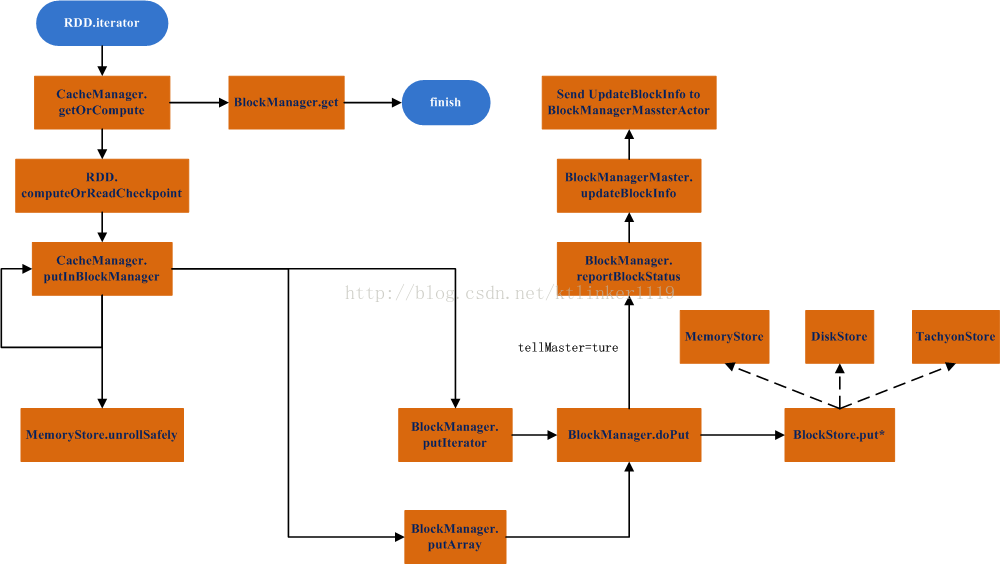

  final def iterator(split: Partition, context: TaskContext): Iterator[T] = {
    if (storageLevel != StorageLevel.NONE) {
      SparkEnv.get.cacheManager.getOrCompute(this, split, context, storageLevel)
    } else {
      computeOrReadCheckpoint(split, context)
    }
  }

  def getOrCompute[T](
      rdd: RDD[T],
      partition: Partition,
      context: TaskContext,
      storageLevel: StorageLevel): Iterator[T] = {
    val key = RDDBlockId(rdd.id, partition.index)
    logDebug(s"Looking for partition $key")
    blockManager.get(key) match {
      case Some(blockResult) =>
        // Partition is already materialized, so just return its values
        ......
        val iter = blockResult.data.asInstanceOf[Iterator[T]]
        new InterruptibleIterator[T](context, iter) {
          override def next(): T = {
            existingMetrics.incRecordsRead(1)
            delegate.next()
          }
        }
      case None =>
        ......
        // Otherwise, we have to load the partition ourselves
        try {
          logInfo(s"Partition $key not found, computing it")
          val computedValues = rdd.computeOrReadCheckpoint(partition, context)
          // If the task is running locally, do not persist the result
          if (context.isRunningLocally) {
            return computedValues
          }
          // Otherwise, cache the values and keep track of any updates in block statuses
          val updatedBlocks = new ArrayBuffer[(BlockId, BlockStatus)]
          val cachedValues = putInBlockManager(key, computedValues, storageLevel, updatedBlocks)
          val metrics = context.taskMetrics
          val lastUpdatedBlocks = metrics.updatedBlocks.getOrElse(Seq[(BlockId, BlockStatus)]())
          metrics.updatedBlocks = Some(lastUpdatedBlocks ++ updatedBlocks.toSeq)
          new InterruptibleIterator(context, cachedValues)
        } finally {
          ......
        }
    }
  }

  private def putInBlockManager[T](
      key: BlockId,
      values: Iterator[T],
      level: StorageLevel,
      updatedBlocks: ArrayBuffer[(BlockId, BlockStatus)],
      effectiveStorageLevel: Option[StorageLevel] = None): Iterator[T] = {
    val putLevel = effectiveStorageLevel.getOrElse(level)
    if (!putLevel.useMemory) {
      /*
       * This RDD is not to be cached in memory, so we can just pass the computed values as an
       * iterator directly to the BlockManager rather than first fully unrolling it in memory.
       */
      updatedBlocks ++=
        blockManager.putIterator(key, values, level, tellMaster = true, effectiveStorageLevel)
      blockManager.get(key) match {
        case Some(v) => v.data.asInstanceOf[Iterator[T]]
        case None =>
          logInfo(s"Failure to store $key")
          throw new BlockException(key, s"Block manager failed to return cached value for $key!")
      }
    } else {
      /*
       * This RDD is to be cached in memory. In this case we cannot pass the computed values
       * to the BlockManager as an iterator and expect to read it back later. This is because
       * we may end up dropping a partition from memory store before getting it back.
       *
       * In addition, we must be careful to not unroll the entire partition in memory at once.
       * Otherwise, we may cause an OOM exception if the JVM does not have enough space for this
       * single partition. Instead, we unroll the values cautiously, potentially aborting and
       * dropping the partition to disk if applicable.
       */
      blockManager.memoryStore.unrollSafely(key, values, updatedBlocks) match {
        case Left(arr) =>
          // We have successfully unrolled the entire partition, so cache it in memory
          updatedBlocks ++=
            blockManager.putArray(key, arr, level, tellMaster = true, effectiveStorageLevel)
          arr.iterator.asInstanceOf[Iterator[T]]
        case Right(it) =>
          // There is not enough space to cache this partition in memory
          val returnValues = it.asInstanceOf[Iterator[T]]
          if (putLevel.useDisk) {
            logWarning(s"Persisting partition $key to disk instead.")
            val diskOnlyLevel = StorageLevel(useDisk = true, useMemory = false,
              useOffHeap = false, deserialized = false, putLevel.replication)
            putInBlockManager[T](key, returnValues, level, updatedBlocks, Some(diskOnlyLevel))
          } else {
            returnValues
          }
      }
    }
  }
