医院信息管理系统(pycharm+MySQL)
1. 利用sql语句创建数据库表
科室表:包括科室编号、科室名称、科室地址、科室电话
医生资料表:包括医生编号、医生姓名、职务、性别、年龄、所属科室
病房资料表:包括房间号、房间地址、所属科室
患者资料表:包括患者编号、患者名、性别、年龄、疾病、主治医生编号、所住病房编号、住院时间、预计出院时间
护士资料表:包括护士编号、护士姓名、性别、年龄
药品资料表:包括药品编号、药品名、供应商、库存、价格
患者使用药品记录表:包括患者编号、药品编号、用药数量
患者护理记录表:包括患者编号、护士编号、护理内容、护理时间
医院基本信息表:包括医院编号、医院名称、院长名称、地址、联系号码
2. 用python对数据进行操纵,并实现以下功能:
(1)以管理员的身份登录,对所创建的前8个基本表的数据进行增加、修改和删除
(2)以游客的身份登录,查看医院的基本信息
注意:
3.下面是界面的截图

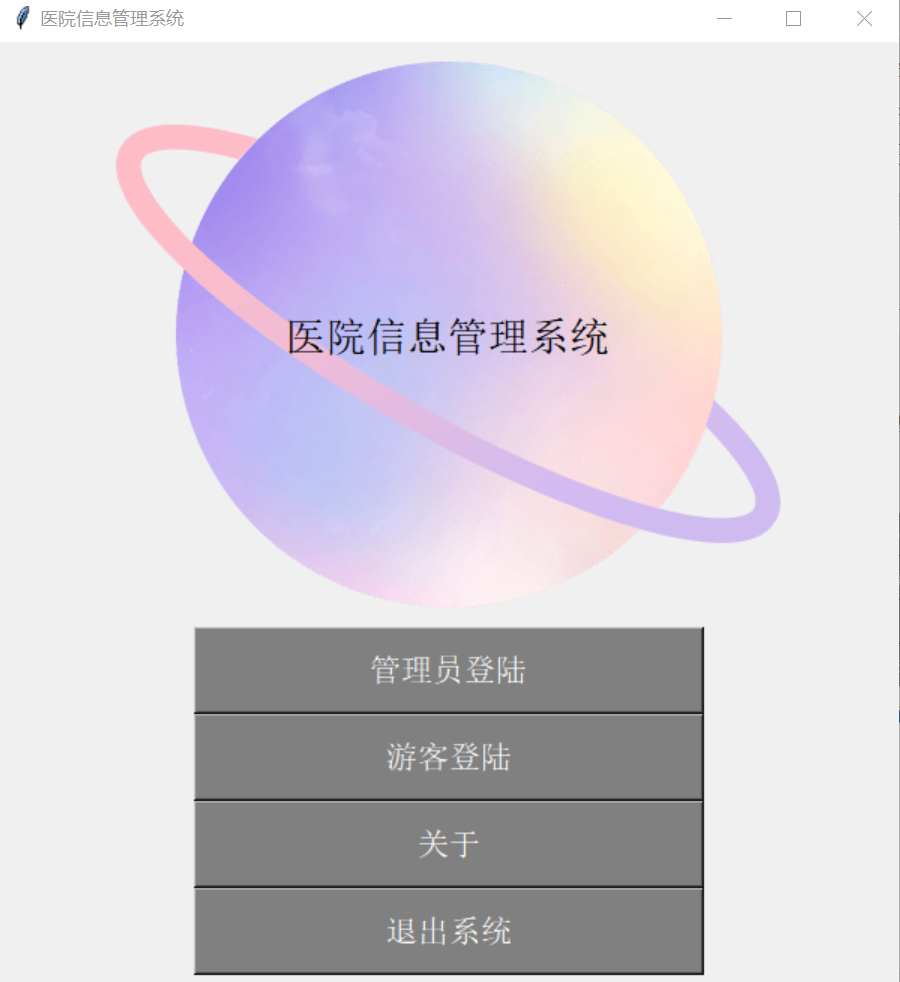

主界面:

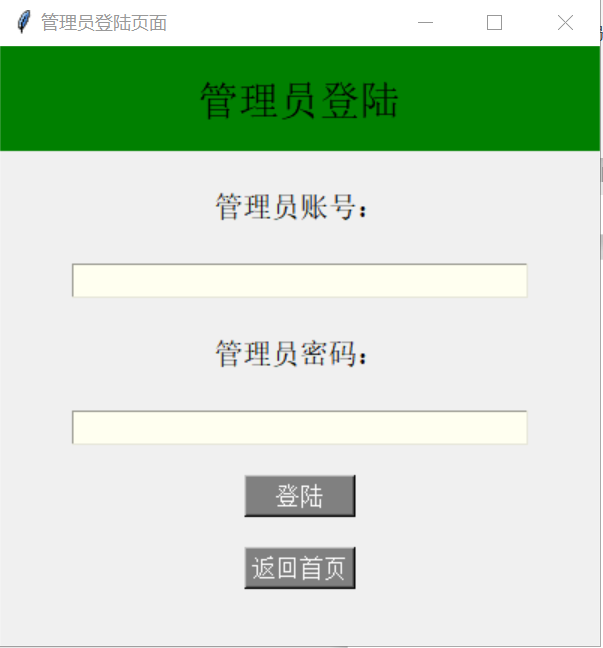

管理员登录界面:

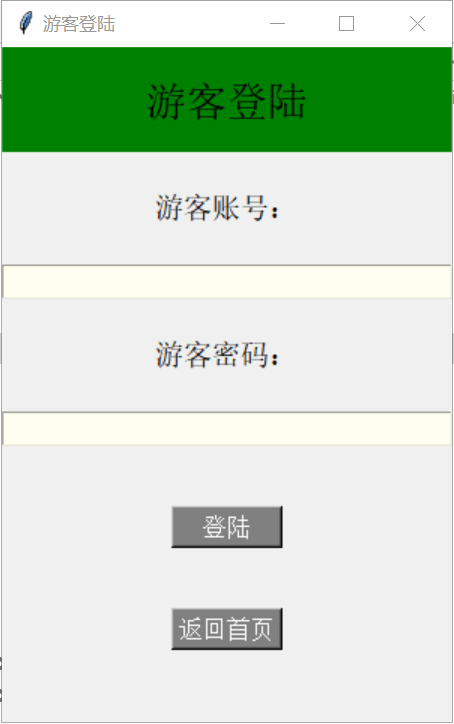

游客登录界面:

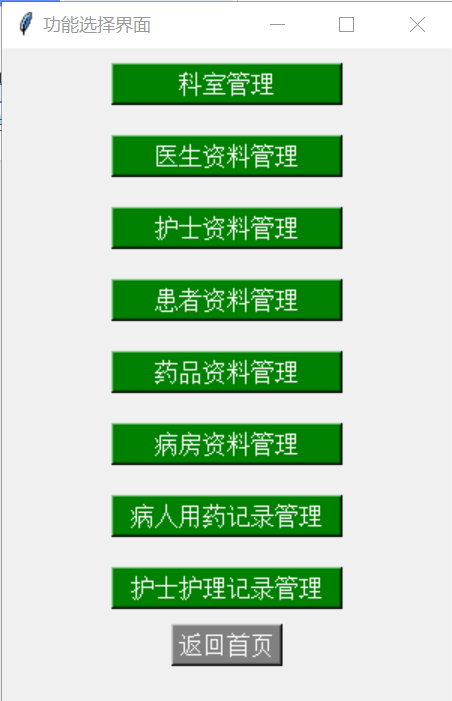

功能选择界面:

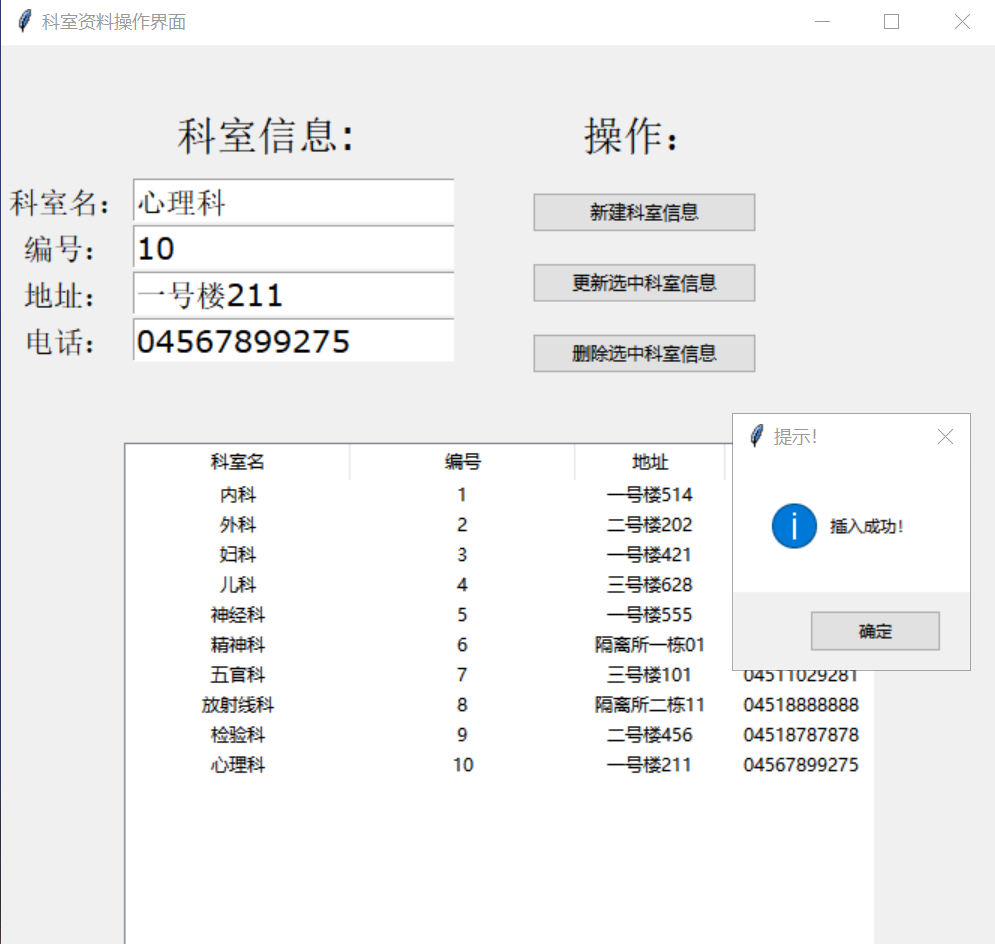

科室表操作界面:
4.完整的python代码如下:
import pymysql
from tkinter import ttk
import tkinter as tk
import tkinter.font as tkFont
from tkinter import * # 图形界面库
import tkinter.messagebox as messagebox # 弹窗
class StartPage: def __init__(self, parent_window): parent_window.destroy() # 销毁子界面 self.window = tk.Tk() # 初始框的声明 self.window.title('医院信息管理系统') self.window.geometry('600x700') # 这里的乘是小x # 创建一个图片管理类 photo = tk.PhotoImage(file="img3.png") # file:t图片路径 label =tk.Label(self.window, text="医院信息管理系统", justify=tk.LEFT, image=photo, compound=tk.CENTER, font=("Verdana", 20), fg="black") # label=Label(self.window,text="医院信息管理系统", font=("Verdana", 20),image=photo) # 把图片整合到标签类中 label.pack(pady=10) # pady=100 界面的长度 Button(self.window, text="管理员登陆", font=tkFont.Font(size=16), command=lambda: AdminPage(self.window), width=30, height=2,fg='white', bg='gray', activebackground='black', activeforeground='white').pack() Button(self.window, text="游客登陆", font=tkFont.Font(size=16), command=lambda: StudentPage(self.window), width=30, height=2, fg='white', bg='gray', activebackground='black', activeforeground='white').pack() Button(self.window, text="关于", font=tkFont.Font(size=16), command=lambda: AboutPage(self.window), width=30, height=2,fg='white', bg='gray', activebackground='black', activeforeground='white').pack() Button(self.window, text='退出系统', height=2, font=tkFont.Font(size=16), width=30, command=self.window.destroy, fg='white', bg='gray', activebackground='black', activeforeground='white').pack() self.window.mainloop() # 主消息循环 # 管理员登陆页面的初始化 class AdminPage: def __init__(self, parent_window): parent_window.destroy() # 销毁主界面 self.window = tk.Tk() # 初始框的声明 self.window.title('管理员登陆页面') self.window.geometry('400x400') # 这里的乘是小x label = tk.Label(self.window, text='管理员登陆', bg='green', font=('Verdana', 20), width=30, height=2) label.pack() Label(self.window, text='管理员账号:', font=tkFont.Font(size=14)).pack(pady=25) self.admin_username = tk.Entry(self.window, width=30, font=tkFont.Font(size=14), bg='Ivory') self.admin_username.pack() Label(self.window, text='管理员密码:', font=tkFont.Font(size=14)).pack(pady=25) self.admin_pass = tk.Entry(self.window, width=30, font=tkFont.Font(size=14), bg='Ivory', show='*') self.admin_pass.pack() Button(self.window, text="登陆", width=8, font=tkFont.Font(size=12), command=lambda:Gongnengjiemian(self.window),fg='white', bg='gray', activebackground='black', activeforeground='white').pack(pady=20) Button(self.window, text="返回首页", width=8, font=tkFont.Font(size=12), command=self.back,fg='white', bg='gray', activebackground='black', activeforeground='white').pack() self.window.protocol("WM_DELETE_WINDOW", self.back) # 捕捉右上角关闭点击 self.window.mainloop() # 进入消息循环 def back(self): StartPage(self.window) # 显示主窗口 销毁本窗口 #功能界面的初始化、实现管理员登录 class Gongnengjiemian: def __init__(self, parent_window): parent_window.destroy() # 销毁主界面 self.window= tk.Tk() # 初始框的声明 self.window.title('功能选择界面') self.window.geometry('300x450') # 这里的乘是小x Button(self.window, text="科室管理", width=18, font=tkFont.Font(size=12), command=lambda: AdminManage(self.window),fg='white', bg='green', activebackground='black', activeforeground='white').pack(pady=10) Button(self.window, text="医生资料管理", width=18, font=tkFont.Font(size=12), command=lambda: AdminManage1(self.window),fg='white', bg='green', activebackground='black', activeforeground='white').pack(pady=10) Button(self.window, text="护士资料管理", width=18, font=tkFont.Font(size=12),command=lambda: AdminManage2(self.window),fg='white', bg='green', activebackground='black', activeforeground='white').pack(pady=10) Button(self.window, text="患者资料管理", width=18, font=tkFont.Font(size=12),command=lambda: AdminManage3(self.window),fg='white', bg='green', activebackground='black', activeforeground='white').pack(pady=10) Button(self.window, text="药品资料管理", width=18, font=tkFont.Font(size=12),command=lambda: AdminManage4(self.window),fg='white', bg='green', activebackground='black', activeforeground='white').pack(pady=10) Button(self.window, text="病房资料管理", width=18, font=tkFont.Font(size=12), command=lambda: AdminManage5(self.window),fg='white', bg='green', activebackground='black', activeforeground='white').pack(pady=10) Button(self.window, text="病人用药记录管理", width=18, font=tkFont.Font(size=12), command=lambda: AdminManage6(self.window),fg='white', bg='green', activebackground='black', activeforeground='white').pack(pady=10) Button(self.window, text="护士护理记录管理", width=18, font=tkFont.Font(size=12), command=lambda: AdminManage7(self.window),fg='white', bg='green', activebackground='black', activeforeground='white').pack(pady=10) Button(self.window, text="返回首页", width=8, font=tkFont.Font(size=12), command=self.back,fg='white', bg='gray', activebackground='black', activeforeground='white').pack() self.window.protocol("WM_DELETE_WINDOW", self.back) # 捕捉右上角关闭点击 self.window.mainloop() # 进入消息循环 def login(self): print(str(self.admin_username.get())) print(str(self.admin_pass.get())) admin_pass = None # 数据库操作 查询管理员表 db = pymysql.Connect( host='localhost', port=3306, user='root', passwd='123456', db='hospital', charset='utf8' ) # 打开数据库连接 cursor = db.cursor() # 使用cursor()方法获取操作游标 sql = "SELECT * FROM admin_login_k WHERE admin_id = '%s'" % (self.admin_username.get()) # SQL 查询语句 try: # 执行SQL语句 cursor.execute(sql) # 获取所有记录列表 results = cursor.fetchall() for row in results: admin_id = row[0] admin_pass = row[1] # 打印结果 print("admin_id=%s,admin_pass=%s" % (admin_id, admin_pass)) except: print("Error: unable to fecth data") messagebox.showinfo('警告!', '用户名或密码不正确!') db.close() # 关闭数据库连接 print("正在登陆管理员管理界面") print("self", self.admin_pass) print("local", admin_pass) if self.admin_pass.get() == admin_pass: AdminManage(self.window) # 进入管理员操作界面 else: messagebox.showinfo('警告!', '用户名或密码不正确!') def back(self): StartPage(self.window) # 显示主窗口 销毁本窗口 # 游客登陆页面的初始化 class StudentPage: def __init__(self, parent_window): parent_window.destroy() # 销毁主界面 self.window = tk.Tk() # 初始框的声明 self.window.title('游客登陆') self.window.geometry('300x450') # 这里的乘是小x label = tk.Label(self.window, text='游客登陆', bg='green', font=('Verdana', 20), width=30, height=2) label.pack() Label(self.window, text='游客账号:', font=tkFont.Font(size=14)).pack(pady=25) self.student_id = tk.Entry(self.window, width=30, font=tkFont.Font(size=14), bg='Ivory') self.student_id.pack() Label(self.window, text='游客密码:', font=tkFont.Font(size=14)).pack(pady=25) self.student_pass = tk.Entry(self.window, width=30, font=tkFont.Font(size=14), bg='Ivory', show='*') self.student_pass.pack() Button(self.window, text="登陆", width=8, font=tkFont.Font(size=12), command=self.login,fg='white', bg='gray', activebackground='black', activeforeground='white').pack(pady=40) Button(self.window, text="返回首页", width=8, font=tkFont.Font(size=12), command=self.back,fg='white', bg='gray', activebackground='black', activeforeground='white').pack() self.window.protocol("WM_DELETE_WINDOW", self.back) # 捕捉右上角关闭点击 self.window.mainloop() # 进入消息循环 def login(self): print(str(self.student_id.get())) print(str(self.student_pass.get())) stu_pass = None # 数据库操作 查询管理员表 db = pymysql.Connect( host='localhost', port=3306, user='root', passwd='123456', db='hospital', charset='utf8' ) # 打开数据库连接 cursor = db.cursor() # 使用cursor()方法获取操作游标 sql = "SELECT * FROM stu_login_k WHERE stu_id = '%s'" % (self.student_id.get()) # SQL 查询语句 try: # 执行SQL语句 cursor.execute(sql) # 获取所有记录列表 results = cursor.fetchall() for row in results: stu_id = row[0] stu_pass = row[1] # 打印结果 print("stu_id=%s,stu_pass=%s" % (stu_id, stu_pass)) except: print("Error: unable to fecth data") messagebox.showinfo('警告!', '用户名或密码不正确!') db.close() # 关闭数据库连接 print("正在登陆游客查看界面") print("self", self.student_pass.get()) print("local", stu_pass) if self.student_pass.get() == stu_pass: StudentView(self.window, self.student_id.get()) # 进入学生信息查看界面 else: messagebox.showinfo('警告!', '用户名或密码不正确!') def back(self): StartPage(self.window) # 显示主窗口 销毁本窗口 # 科室资料管理操作界面 class AdminManage: def __init__(self, parent_window): parent_window.destroy() # 销毁主界面 self.window = Tk() # 初始框的声明 self.window.title('科室资料操作界面') self.frame_left_top = tk.Frame(width=300, height=200) self.frame_right_top = tk.Frame(width=300, height=200) self.frame_center = tk.Frame(width=500, height=400) self.frame_bottom = tk.Frame(width=650, height=50) # 定义下方中心列表区域 self.columns = ("科室名", "编号", "地址", "电话") self.tree = ttk.Treeview(self.frame_center, show="headings", height=18, columns=self.columns) self.vbar = ttk.Scrollbar(self.frame_center, orient=VERTICAL, command=self.tree.yview) # 定义树形结构与滚动条 self.tree.configure(yscrollcommand=self.vbar.set) # 表格的标题 self.tree.column("科室名", width=150, anchor='center') # 表示列,不显示 self.tree.column("编号", width=150, anchor='center') self.tree.column("地址", width=100, anchor='center') self.tree.column("电话", width=100, anchor='center') # 调用方法获取表格内容插入 self.tree.grid(row=0, column=0, sticky=NSEW) self.vbar.grid(row=0, column=1, sticky=NS) self.dpname = [] self.dpno = [] self.dpadr = [] self.dptel = [] # 打开数据库连接 db = pymysql.Connect( host='localhost', port=3306, user='root', passwd='123456', db='hospital', charset='utf8' ) cursor = db.cursor() # 使用cursor()方法获取操作游标 sql = "SELECT * FROM department" # SQL 查询语句 try: # 执行SQL语句 cursor.execute(sql) # 获取所有记录列表 results = cursor.fetchall() for row in results: self.dpname.append(row[0]) self.dpno.append(row[1]) self.dpadr.append(row[2]) self.dptel.append(row[3]) # print(self.id) # print(self.name) # print(self.gender) # print(self.age) except: print("Error: unable to fetch data") messagebox.showinfo('警告!', '数据库连接失败!') db.close() # 关闭数据库连接 print("test***********************") for i in range(min(len(self.dpname), len(self.dpno), len(self.dpadr), len(self.dptel))): # 写入数据 self.tree.insert('', i, values=(self.dpname[i], self.dpno[i], self.dpadr[i], self.dptel[i])) for col in self.columns: # 绑定函数,使表头可排序 self.tree.heading(col, text=col, command=lambda _col=col: self.tree_sort_column(self.tree, _col, False)) # 定义顶部区域 # 定义左上方区域 self.top_title = Label(self.frame_left_top, text="科室信息",bg='green', font=('Verdana', 20)) self.top_title.grid(row=0, column=0, columnspan=2, sticky=NSEW, padx=50, pady=10) self.left_top_frame = tk.Frame(self.frame_left_top) self.var_dpname = StringVar() # 声明科室名 self.var_dpno = StringVar() # 声明编号 self.var_dpadr = StringVar() # 声明地址 self.var_dptel = StringVar() # 声明电话 # 科室名 self.right_top_dpname_label = Label(self.frame_left_top, text="科室名:", font=('Verdana', 15)) self.right_top_dpname_entry = Entry(self.frame_left_top, textvariable=self.var_dpname, font=('Verdana', 15)) self.right_top_dpname_label.grid(row=1, column=0) # 位置设置 self.right_top_dpname_entry.grid(row=1, column=1) # 编号 self.right_top_dpno_label = Label(self.frame_left_top, text="编号:",font=('Verdana', 15)) self.right_top_dpno_entry = Entry(self.frame_left_top, textvariable=self.var_dpno, font=('Verdana', 15)) self.right_top_dpno_label.grid(row=2, column=0) # 位置设置 self.right_top_dpno_entry.grid(row=2, column=1) # 地址 self.right_top_dpadr_label = Label(self.frame_left_top, text="地址:", font=('Verdana', 15)) self.right_top_dpadr_entry = Entry(self.frame_left_top, textvariable=self.var_dpadr,font=('Verdana', 15)) self.right_top_dpadr_label.grid(row=3, column=0) # 位置设置 self.right_top_dpadr_entry.grid(row=3, column=1) # 电话 self.right_top_dptel_label = Label(self.frame_left_top, text="电话:", font=('Verdana', 15)) self.right_top_dptel_entry = Entry(self.frame_left_top, textvariable=self.var_dptel, font=('Verdana', 15)) self.right_top_dptel_label.grid(row=4, column=0) # 位置设置 self.right_top_dptel_entry.grid(row=4, column=1) # 定义右上方区域 self.right_top_title = Label(self.frame_right_top, text="操作", font=('Verdana', 20)) self.tree.bind('<Button-1>', self.click) # 左键获取位置 self.right_top_button1 = ttk.Button(self.frame_right_top, text='新建科室信息', width=20, command=self.new_row) self.right_top_button2 = ttk.Button(self.frame_right_top, text='更新选中科室信息', width=20, command=self.updata_row) self.right_top_button3 = ttk.Button(self.frame_right_top, text='删除选中科室信息', width=20, command=self.del_row) # 位置设置 self.right_top_title.grid(row=1, column=0, pady=10) self.right_top_button1.grid(row=2, column=0, padx=20, pady=10) self.right_top_button2.grid(row=3, column=0, padx=20, pady=10) self.right_top_button3.grid(row=4, column=0, padx=20, pady=10) # 整体区域定位 self.frame_left_top.grid(row=0, column=0, padx=2, pady=5) self.frame_right_top.grid(row=0, column=1, padx=30, pady=30) self.frame_center.grid(row=1, column=0, columnspan=2, padx=4, pady=5) self.frame_bottom.grid(row=2, column=0, columnspan=2) self.frame_left_top.grid_propagate(0) self.frame_right_top.grid_propagate(0) self.frame_center.grid_propagate(0) self.frame_bottom.grid_propagate(0) self.frame_left_top.tkraise() # 开始显示主菜单 self.frame_right_top.tkraise() # 开始显示主菜单 self.frame_center.tkraise() # 开始显示主菜单 self.frame_bottom.tkraise() # 开始显示主菜单 self.window.protocol("WM_DELETE_WINDOW", self.back) # 捕捉右上角关闭点击 self.window.mainloop() # 进入消息循环 def back(self): Gongnengjiemian(self.window) # 显示主窗口 销毁本窗口 def click(self, event): self.col = self.tree.identify_column(event.x) # 列 self.row = self.tree.identify_row(event.y) # 行 print(self.col) print(self.row) self.row_info = self.tree.item(self.row, "values") self.var_dpname.set(self.row_info[0]) self.var_dpno.set(self.row_info[1]) self.var_dpadr.set(self.row_info[2]) self.var_dptel.set(self.row_info[3]) self.right_top_dpname_entry = Entry(self.frame_left_top, state='disabled', textvariable=self.var_dpname,font=('Verdana', 15)) print('') def tree_sort_column(self, tv, col, reverse): # Treeview、列名、排列方式 l = [(tv.set(k, col), k) for k in tv.get_children('')] l.sort(reverse=reverse) # 排序方式 # rearrange items in sorted positions for index, (val, k) in enumerate(l): # 根据排序后索引移动 tv.move(k, '', index) tv.heading(col, command=lambda: self.tree_sort_column(tv, col, not reverse)) # 重写标题,使之成为再点倒序的标题 def new_row(self): print('123') print(self.var_dpname.get()) print(self.dpname) if str(self.var_dpname.get()) in self.dpname: messagebox.showinfo('警告!', '该科室已存在!') else: if self.var_dpname.get() != '' and self.var_dpno.get() != '' and self.var_dpadr.get() != '' and self.var_dptel.get() != '': # 打开数据库连接 db = pymysql.Connect( host='localhost', port=3306, user='root', passwd='123456', db='hospital', charset='utf8' ) cursor = db.cursor() # 使用cursor()方法获取操作游标 sql = "INSERT INTO department(dpname, dpno, dpadr, dptel) VALUES('%s', '%s', '%s', '%s') " % (self.var_dpname.get(), self.var_dpno.get(), self.var_dpadr.get(), self.var_dptel.get()) # SQL 插入语句 try: cursor.execute(sql) # 执行sql语句 db.commit() # 提交到数据库执行 except: db.rollback() # 发生错误时回滚 messagebox.showinfo('警告!', '数据库连接失败!') db.close() # 关闭数据库连接 self.dpname.append(self.var_dpname.get()) self.dpno.append(self.var_dpno.get()) self.dpadr.append(self.var_dpadr.get()) self.dptel.append(self.var_dptel.get()) self.tree.insert('', len(self.dpname) - 1, values=( self.dpname[len(self.dpname) - 1], self.dpno[len(self.dpname) - 1], self.dpadr[len(self.dpname) - 1],self.dptel[len(self.dpname) - 1])) self.tree.update() messagebox.showinfo('提示!', '插入成功!') else: messagebox.showinfo('警告!', '请填写科室数据') def updata_row(self): res = messagebox.askyesnocancel('警告!', '是否更新所填数据?') if res == True: if self.var_dpname.get() == self.row_info[0]: # 如果所填学号 与 所选学号一致 # 打开数据库连接 db =pymysql.Connect( host='localhost', port=3306, user='root', passwd='123456', db='hospital', charset='utf8' ) cursor = db.cursor() # 使用cursor()方法获取操作游标 sql = "UPDATE department SET dpno = '%s', dpadr = '%s', dptel = '%s' WHERE dpname= '%s'" % (self.var_dpno.get(), self.var_dpadr.get(), self.var_dptel.get(), self.var_dpname.get()) # SQL 插入语句 try: cursor.execute(sql) # 执行sql语句 db.commit() # 提交到数据库执行 messagebox.showinfo('提示!', '更新成功!') except: db.rollback() # 发生错误时回滚 messagebox.showinfo('警告!', '更新失败,数据库连接失败!') db.close() # 关闭数据库连接 dpname_index = self.dpname.index(self.row_info[0]) self.dpname[dpname_index] = self.var_dpname.get() self.dpadr[dpname_index] = self.var_dpadr.get() self.dptel[dpname_index] = self.var_dptel.get() self.tree.item(self.tree.selection()[0], values=(self.var_dpname.get(), self.var_dpno.get(), self.var_dpadr.get(),self.var_dptel.get())) else: messagebox.showinfo('警告!', '不能修改科室姓名!') def del_row(self): res = messagebox.askyesnocancel('警告!', '是否删除所选数据?') if res == True: print(self.row_info[0]) # 鼠标选中的学号 print(self.tree.selection()[0]) # 行号 print(self.tree.get_children()) # 所有行 # 打开数据库连接 db= pymysql.Connect( host='localhost', port=3306, user='root', passwd='123456', db='hospital', charset='utf8' ) cursor = db.cursor() # 使用cursor()方法获取操作游标 sql = "DELETE FROM department WHERE dpname = '%s'" % (self.row_info[0]) # SQL 插入语句 try: cursor.execute(sql) # 执行sql语句 db.commit() # 提交到数据库执行 messagebox.showinfo('提示!', '删除成功!') except: db.rollback() # 发生错误时回滚 messagebox.showinfo('警告!', '删除失败,数据库连接失败!') db.close() # 关闭数据库连接 dpname_index = self.dpno.index(self.row_info[0]) print(dpname_index) del self.dpname[dpname_index] del self.dpno[dpname_index] del self.dpadr[dpname_index] del self.dptel[dpname_index] print(self.dpno) self.tree.delete(self.tree.selection()[0]) # 删除所选行 print(self.tree.get_children()) # 医生资料管理操作界面 class AdminManage1: def __init__(self, parent_window): parent_window.destroy() # 销毁主界面 self.window = Tk() # 初始框的声明 self.window.title('医生资料管理界面') self.frame_left_top = tk.Frame(width=300, height=250) self.frame_right_top = tk.Frame(width=200, height=200) self.frame_center = tk.Frame(width=700, height=800) self.frame_bottom = tk.Frame(width=700, height=10) # 定义下方中心列表区域 self.columns = ("编号", "医生名", "职称", "性别","年龄","科室") self.tree = ttk.Treeview(self.frame_center, show="headings", height=18, columns=self.columns) self.vbar = ttk.Scrollbar(self.frame_center, orient=
