refer, Linux 用作 IPv6 网关 http://bigeagle.me/2011/11/linux_as_ipv6_gateway/

https://www.berrange.com/posts/2011/06/16/providing-ipv6-connectivity-to-virtual-guests-with-libvirt-and-kvm/

https://etherpad.openstack.org/IPV6-Support

l3-agent don't support ipv6
IPv4 address exhaustion, especially in Asia Pacific region.
- support assignment of only IPv6 address to VM.
- Configuration flag to select IPv4 mode or IPv6 mode or dual stack mode.
- Each VIF of VM is assigned both IPv6 global unicast address
- Pass-through IPv6 packets on L3-agent node.
- Firewall rule management for IPv6 traffic
- Support DNSv6
- Support IPv6 connections to all API layers.

- NTP poisoning

IPv6 evolution History

下面三张图依次显示了实现IPv6的三种模型：

1, NAT66, 即仿造现有的OpenStack IPv4实现中的NAT方式

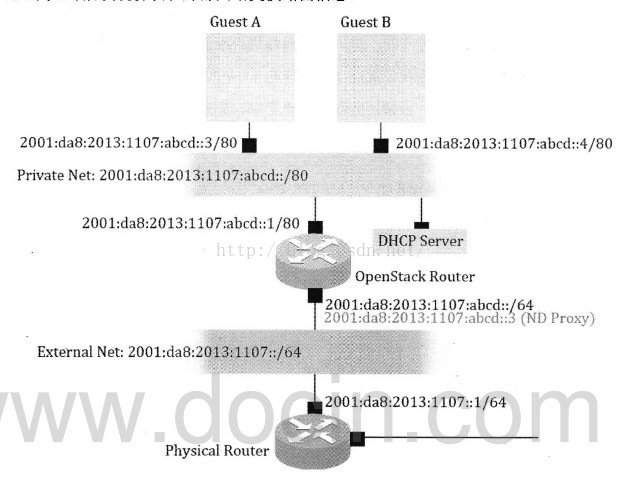

2, ND proxy方式，本文将要叙述的

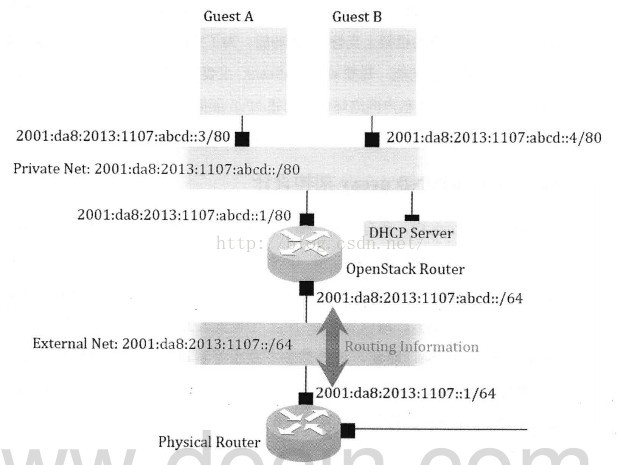

3, 路由方式，采用动态路由协议交换路由

ipv6 process
eg:
WAN: br-ex (GW: 2001:2:3:4500::1/56,  IP: 2001:2:3:45ff:ff:ff:ff:ff/128 )
LAN: br-int
VM1: 2001:2:3: 4501::/64, 2001:2:3:4501:221:70ff:fec0:ef3f
VM2: 2001:2:3: 4502::/64

br-ex: 2001:2:3:45ff:ff:ff:ff:ff/128

in physical router:

ip-6 route add 2001:2:3:4500::/56 via 2001:2:3:4500::1

in l3-agent

ip -6 route add default 2001:2:3:4500::0/56 dev qg-interface  ( for every tenant router)

ip -6 route add 2001:2:3:4501::/64 dev gw-tenant1
ip -6 route add 2001:2:3:4502::/64 dev gw-tenant2

ip -6 neigh add proxy 2001:2:3:4501:221:70ff:fec0:ef3f/64 dev gw-tenant1

ip -6 neigh add proxy 2001:2:3:4501::1 dev qg-interface
ip -6 neigh add proxy 2001:2:3:4502::1 dev qg-interface

             --------- physical router 2001:2:3:4500::1/56 -------------

.           ----------. 2001:2:3:4500::2/56   .---------------.
sixxs                        |  br-ex   (qg-interface)
                                 |
                                  *----------*

.----------.                                    .---------------.
|  br-eth1   |veth______________veth|    br-int     |
|          |eth0                  |               |
*----------*                      *---------------*
                           gw-tenant1 |        | gw-tenant2
                                      |        |
                   2001:2:3:4501::/64 |        | 2001:2:3:4502::/64
                                      |        |
                                 tap1 |        | tap2
                                    [VM1]   [VM2]

                          VM1: 2001:2:3:4501:221:70ff:fec0:ef3f/64

1) open ipv6 function and install radvd in the l3-agent node to allocate the ipv6 address for VM.

( dhcp-range=tag:br0,::1,::FFFF,constructor:br0, ra-names, 12h
  enable-ra )

cat /etc/radvd.conf

interface gw-tenant1 {
   AdvSendAdvert on;
   AdvManagedFlag off;
   AdvOtherConfigFlag off;         # tell client vm if use DHCPv6 to allocate ip.
   Prefix 2001:2:3:4501::/64{      # broadcast ipv6 prefix.
     AdvOnLink on;
     AdvAutonomous on;
     AdvRouterAddr off;
   };

};

interface gw-tenant2 {
   AdvSendAdvert on;
   AdvManagedFlag off;
   AdvOtherConfigFlag off;         # tell client vm if use DHCPv6 to allocate ip.
   Prefix 2001:2:3:4502::/64{      # broadcast ipv6 prefix.
     AdvOnLink on;
     AdvAutonomous on;
     AdvRouterAddr off;
   };
};
if useing DHCPv6 to allocate ip, dhcp6s only provide ip, not provide prefix, so it needs to collaborate with radvd:
cat /etc/dhcp6s.conf
interface br-lan {
        address-pool pool1 86400;
};
pool pool1 {
        range 2001:2:3:4500:aaaa::1 to 2001:2:3:4500:aaaa::ffff ;
}

注意：dnsmasq也是可以代替radvd的，如使用配置(http://www.thekelleys.org.uk/dnsmasq/docs/dnsmasq-man.html)：

dnsmasq
enable-ra, 告诉dnsmasq使用ipv6前缀
dhcp-range,
   ra-only, dnsmasq发RA广播，但不使用DHCPv6
   slaac, dnsmasq发RA广播，并设置A-bit这样客户端能生成SLAAC地址

   ra-stateless, dnsmasq发RA广播，并设置O-bit与A-bit这样客户端生成SLAAC地址并使用DHCP检索其他信息

ND协议包中有三个位(Auto, Managed, Other)：

• M bit (Managed Address Configuration), M bit 如果是 1,表示 Clients 要另外再去跟 DHCPv6 要 IPv6 Prefix
• O bit (Other Configuration), O bit 如果是 1,表示 Clients 要去跟 DHCPv6 要 DNS 等等資訊.

这样：

• slaas, Stateless autoconfiguration, A=1, M=0, O=0, 主机將只得到 Router 給的 Prefix,無法取得 DNS 等資訊,其他必須自己填寫.

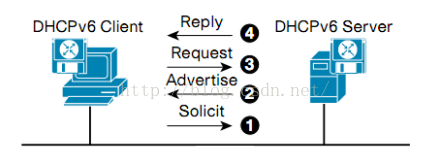

• dhcpv6-stateful, A=0, M=1, O=1, 所有信息（IPv6 prefix, DNS等）都通过DHCPv6获得類似於 IPv4 的 DHCP ,客戶端主要使用 UDP port 546 而服務器端使用 UDP port 547
•

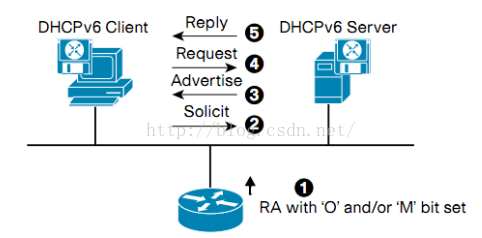

• dhcpv6-stateless,A=1, M=0, O=1, 除了使用 RA 裡面的 Prefix,其他如 DNS 等等資訊會由 DHCPv6 取得. 如下图所示:

相应地，Neutron提供了两个属性

• ipv6_ra_mode: 置位slaas, dhcpv6-stateful, dhcpv6-stateless后即使用Neutron radvd， 不置位使用外部路由器
• ipv6_address_mode: 置位slaas, dhcpv6-stateful, dhcpv6-stateless决定上述ND协议包中的三个位.

2) configure router for VM
sysctl -w net.ipv6.conf.all.forwarding=1
ip -6 addr add 2001:2:3:4501:221:70ff:fec0:ef3f/64  dev tap1

ip -6 addr add 2001:2:3:45ff:ff:ff:ff:ff/128  dev qg-interface
ip -6 route add default 2001:2:3:4500::1/56 dev qg-interface

ip address add 2001:2:3:4501::1 dev gw-tenant1
ip address add 2001:2:3:4502::1 dev gw-tenant2
ip -6 route add 2001:2:3:4501::/64 dev gw-tenant1
ip -6 route add 2001:2:3:4502::/64 dev gw-tenant2

ip -6 route list

3) install NDP protocal in the l3-agent node to tell it's address space to upstream network
sysctl -w net.ipv6.conf.all.proxy_ndp=1
ip -6 neigh add proxy 2001:2:3:4501:221:70ff:fec0:ef3f/64 dev gw-tenant1

# is prepared for the hardware router in the front of br-ex
ip -6 neigh add proxy 2001:2:3:4501::1 dev br-ex
ip -6 neigh add proxy 2001:2:3:4502::1 dev br-ex

if no haredware router, we can continue to demo this env user radvd.
ifconfig eth0 promisc

how to test,
1) curl --verbose -6http://localhost
2) tcpdump -ni <interface> ip6

noteson openstack ipv6 support (untested)
1, ipv6 support is not activated in /etc/nova/nova.conf, --use_ipv6=True
2, fixed ip,
nova-manage network create--label=myown \
--vlan=2511 \
--fixed_range_v4=10.145.230.0/24\
--fixed_range_v6=2a01:4f8:161:5304::0/64 \
--gateway_v6=fe80::1 \
--num_networks=1
3, floating ip,
nova-manage floating create --pool=v6pool --ip_range=2a01:4f8:161:5304::10--interface=eth0

if useing DHCPv6 to allocate ip, dhcp6s only provide ip, not provide prefix, so it needs to collaborate with radvd:
cat /etc/dhcp6s.conf
interface br-lan {
        address-pool pool1 86400;
};
pool pool1 {
        range 2001:2:3:4500:aaaa::1 to 2001:2:3:4500:aaaa::ffff ;
}

2) configure router for VM

上面配置了默认路由后，内部网络就可以访问外部网络了，但外网无法得知内网的路由。由于没向ISP申请单独的IPv6块，这里不可能在外网上添加路由，但是：

1,内网与外网同属同一个子网，不可以配置路由向外网广播路由信息包，这样会造成路由混乱。但可以通过proxy_ndp让外网的ndp请求穿过网关。

2,内网与外网不属于同一个子网的话，可以配置路由向外网广播路由信息包，这样就不需要配置proxy_ndp了

注: 路由器是按最大字符长度匹配算法来匹配路由的, 所以前缀相同, 子网长度不同的子网算不同的网段. 所以对于不同子网, 加了路由之后, 下面的就不需要再加ndp_proxy了.

外面发给虚机（2001:2:3:4501:221:70ff:fec0:ef3f/64）的包, 由于前56位是可以路由的，所以先发给br-ex（2001:2:3:4500::2/56），然后br-ex接口所在路由器上没有2001:2:3:4501:221::0/64的转发表，所以它认为该目的IP为
2001:2:3:4500::0/56网络下的主机，直接向2001:2:3:4500::2/56网络组播NS包，ND proxy发现该包是通向自己内部的主机，于是对该NS进行代理 ，将其转发到内部网络2001:2:3:4501:221::0/64中的主机，这样ND proxy就可以获得目的主机的MAC，本地路由器就可以获得ND proxy的MAC，因此，数据包就可以发送到内网虚拟机。

sysctl -w net.ipv6.conf.all.forwarding=1

ip -6 addr add 2001:2:3:4501:221:70ff:fec0:ef3f/64  dev tap1

ip -6 addr add 2001:2:3:45ff:ff:ff:ff:ff/128  dev qg-interface
ip -6 route add default 2001:2:3:4500::1/56 dev qg-interface

ip address add 2001:2:3:4501::1 dev gw-tenant1
ip address add 2001:2:3:4502::1 dev gw-tenant2

ip -6 route add 2001:2:3:4501::/64 dev gw-tenant1
ip -6 route add 2001:2:3:4502::/64 dev gw-tenant2

ip -6 route list

3) install NDP protocal in the l3-agent node to tell it's address space to upstream network
sysctl -w net.ipv6.conf.all.proxy_ndp=1
ip -6 neigh add proxy 2001:2:3:4501:221:70ff:fec0:ef3f/64 dev gw-tenant1

ip -6 neigh add proxy 2001:2:3:4501::1 dev qg-interface
ip -6 neigh add proxy 2001:2:3:4502::1 dev qg-interface

ifconfig eth0 promisc

how to test,
1) curl --verbose -6http://localhost
2) tcpdump -ni <interface> ip6

noteson openstack ipv6 support (untested)
1, ipv6 support is not activated in /etc/nova/nova.conf, --use_ipv6=True

2, fixed ip,
nova-manage network create--label=myown \
--vlan=2511 \
--fixed_range_v4=10.145.230.0/24\
--fixed_range_v6=2a01:4f8:161:5304::0/64 \
--gateway_v6=fe80::1 \
--num_networks=1

3, floating ip,

nova-managefloating create --pool=v6pool --ip_range=2a01:4f8:161:5304::10--interface=eth0

Devstack集成

1, 测试环境准备

因为家中是移动宽带，没有公网IP，所以网上的一些ipv6 6to4 tunnel是用不了的。为此将openwrt中的WAN6口删除，然后点击"Network -> Interfaces"菜单配置IPv6 ULA-Prefix=2001:2:3:4500::/56（它会修改配置/etc/config/radvd），并在WAN口中配置IPv6 Setting(Router Advertisement-Service=server mode, DHCPv6-Service
=server mode, NDP-Proxy=disabled [5], DHCPv6-Mode=stateless+stateful)。
这样家中的电脑会获取到类似2001:2:3:4500:c12c:6b76:fa2e:74ee/64的IPv6地址， 同时openwrt的br-lan口会有网关地址2001:2:3:4500::1/60

vi /etc/network/interfaces
allow-ovs br-phy
iface br-phy inet dhcp
ovs_type OVSBridge
ovs_ports eth0

2, devstack配置

#IPv6 tenant network
IP_VERSION=6
IPV6_RA_MODE=slaac
IPV6_ADDRESS_MODE=slaac
FIXED_RANGE_V6=2001:2:3:4500::/64
IPV6_PRIVATE_NETWORK_GATEWAY=2001:2:3:4500::1
HOST_IPV6=2001:2:3:4500:fa32:e4ff:febe:87cd
#IPv6 management network
SERVICE_IP_VERSION=6
SERVICE_HOST=[$HOST_IPV6]
MYSQL_HOST=$HOST_IPV6

3, 环境变量

export OS_USERNAME=admin
export OS_PASSWORD=password
export OS_TENANT_NAME=demo
export OS_AUTH_URL=http://[2001:2:3:4500:fa32:e4ff:febe:87cd]/v2.0
export OS_AUTH_STRATEGY=keystone

4, 问题， memcached中报错：ValueError: Unable to parse connection string: [2001:2:3:4500:fa32:e4ff:febe:87cd]:11211

diff --git a/lib/keystone b/lib/keystone
index 5695004..55b581f 100644
--- a/lib/keystone
+++ b/lib/keystone
@@ -490,7 +490,7 @@ function configure_auth_token_middleware {
     iniset $conf_file $section auth_uri $KEYSTONE_SERVICE_URI
     iniset $conf_file $section cafile $SSL_BUNDLE_FILE
     iniset $conf_file $section signing_dir $signing_dir
-    iniset $conf_file $section memcached_servers $SERVICE_HOST:11211
+    iniset $conf_file $section memcached_servers inet6:${SERVICE_HOST}:11211
 }
