第一步：搭建安卓开发环境在Ubuntu（64bit）
1.下载eclipse-64bitjuno eclipse（这里下载javadev版的，因为在ubuntu不需要cdt，当然也可以用c/c++版的）
2.下载eclipse的中文包：中文包
3.下载jdk1.8-64bitJDK1.8并配置好环境变量
4.下载sdk-r23
5.下载ADT-23.06
6.下载NDK（这三个工具网上找）

---

第二步：开始配置开发环境

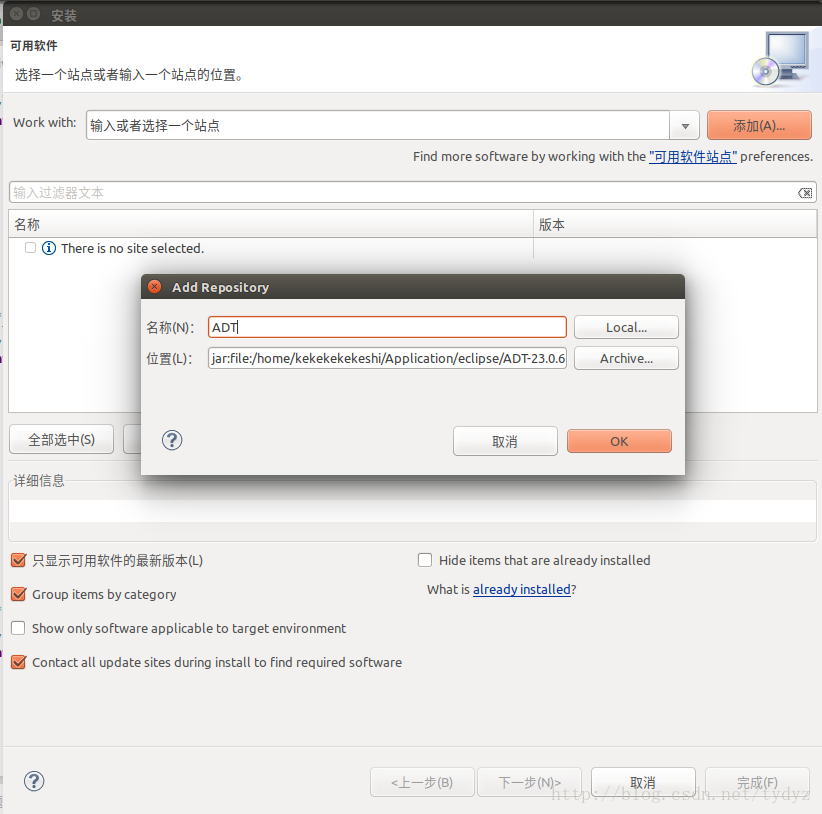

1.打开eclipse安装ADT 帮助》安装新软件》添加》Archive…》ok并去掉最后一个勾选会快速安装adt，然后你就可以安装adt了。

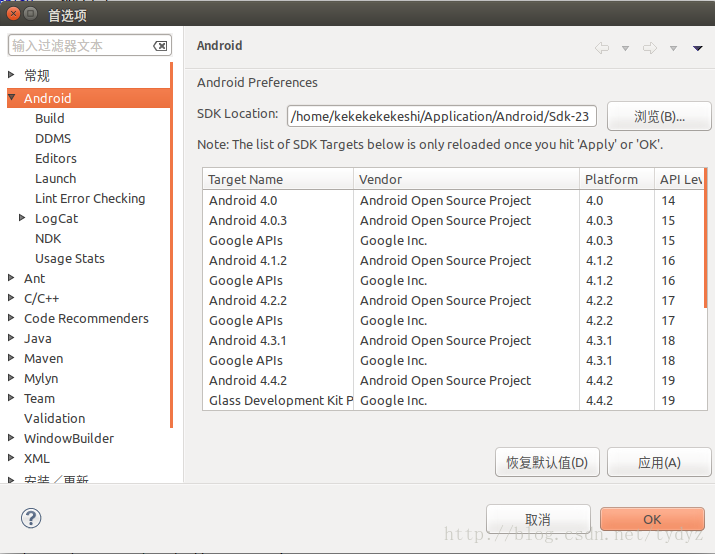

2.重启配置sdk和ndk 窗口》首选项》Android》浏览 如图，你可能需要打开sdk更新。

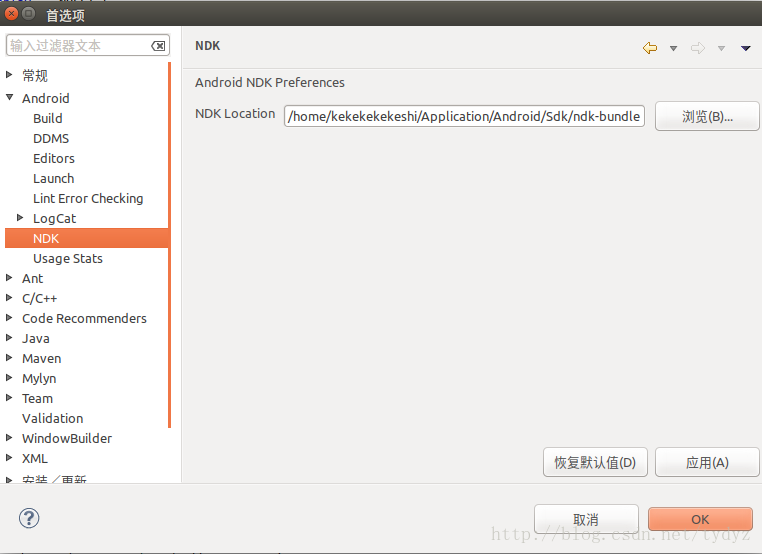

3.配置ndk 窗口》首选项》Android》NDK 如图

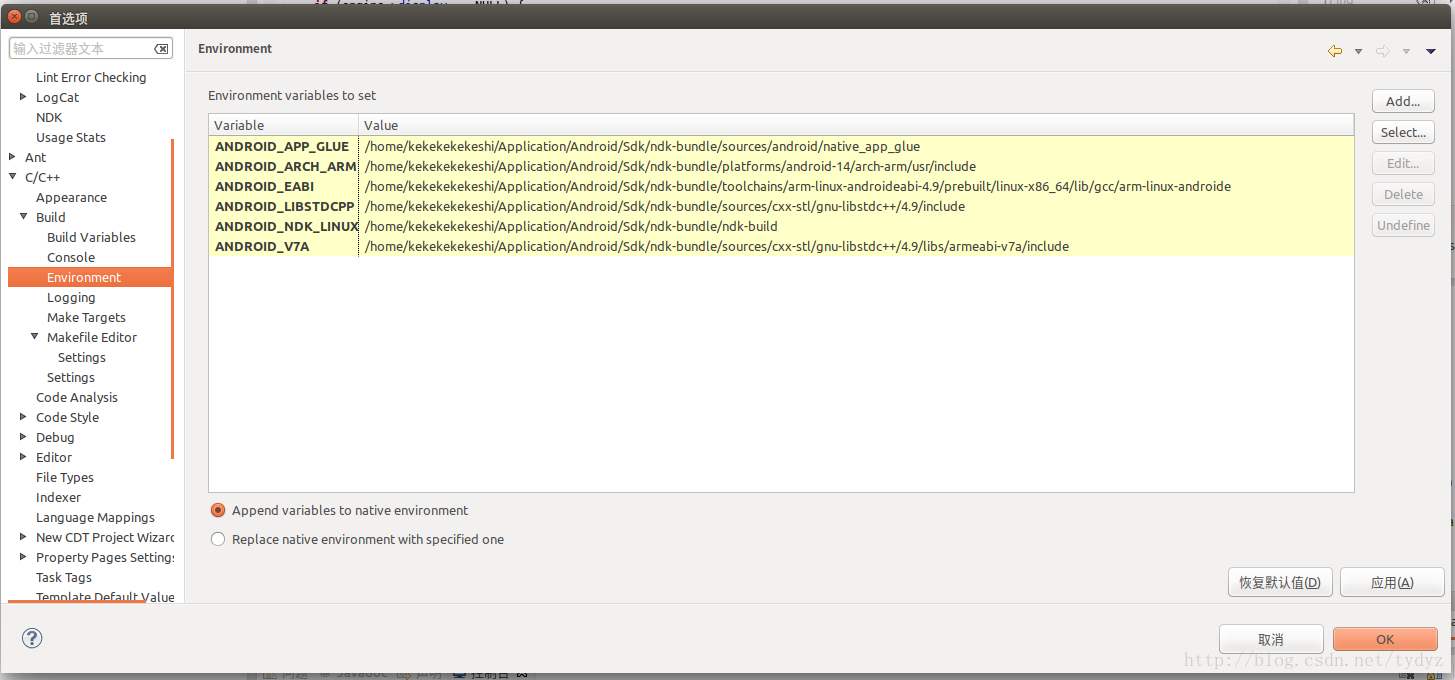

4.配置c/c++编译变量（NDK的）如图

---

第三步：新建NDK工程

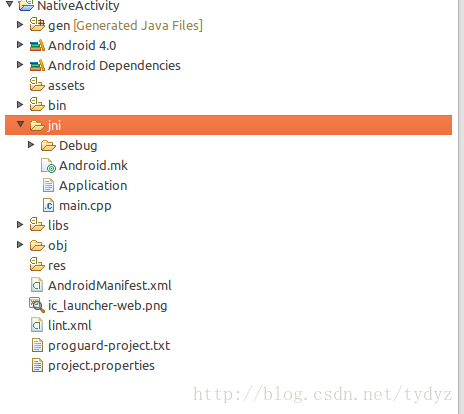

1.新建一个安卓空工程 自己添加一个jni文件夹

2.新建一个文件Application.mk
代码：

APP_PLATFORM := android-14
1

3.新建一个Android.mk文件
代码：

LOCAL_PATH := $(call my-dir)

include $(CLEAR_VARS)

LOCAL_MODULE    := native-activity
LOCAL_SRC_FILES := main.cpp
LOCAL_LDLIBS    := -llog -landroid -lEGL -lGLESv1_CM
LOCAL_STATIC_LIBRARIES := android_native_app_glue

include $(BUILD_SHARED_LIBRARY)

$(call import-module,android/native_app_glue)
1
2
3
4
5
6
7
8
9
10
11
12

4.新建一个main.cpp
代码：

#include <jni.h>
#include <errno.h>
#include <EGL/egl.h>
#include <GLES/gl.h>
#include <string.h>
#include <stdlib.h>
#include <android/sensor.h>
#include <android/log.h>
#include <android_native_app_glue.h>

#define LOGI(...) ((void)__android_log_print(ANDROID_LOG_INFO, "native-activity", __VA_ARGS__))
#define LOGW(...) ((void)__android_log_print(ANDROID_LOG_WARN, "native-activity", __VA_ARGS__))

/**
 * Our saved state data.
 */
struct saved_state {
    float angle;
    int32_t x;
    int32_t y;
};

/**
 * Shared state for our app.
 */
struct engine {
    struct android_app* app;

    ASensorManager* sensorManager;
    const ASensor* accelerometerSensor;
    ASensorEventQueue* sensorEventQueue;

    int animating;
    EGLDisplay display;
    EGLSurface surface;
    EGLContext context;
    int32_t width;
    int32_t height;
    struct saved_state state;
};

/**
 * Initialize an EGL context for the current display.
 */
static int engine_init_display(struct engine* engine) {
    // initialize OpenGL ES and EGL

    /*
     * Here specify the attributes of the desired configuration.
     * Below, we select an EGLConfig with at least 8 bits per color
     * component compatible with on-screen windows
     */
    const EGLint attribs[] = { EGL_SURFACE_TYPE, EGL_WINDOW_BIT, EGL_BLUE_SIZE,
            8, EGL_GREEN_SIZE, 8, EGL_RED_SIZE, 8, EGL_NONE };
    EGLint w, h, dummy, format;
    EGLint numConfigs;
    EGLConfig config;
    EGLSurface surface;
    EGLContext context;

    EGLDisplay display = eglGetDisplay(EGL_DEFAULT_DISPLAY);

    eglInitialize(display, 0, 0);

    /* Here, the application chooses the configuration it desires. In this
     * sample, we have a very simplified selection process, where we pick
     * the first EGLConfig that matches our criteria */
    eglChooseConfig(display, attribs, &config, 1, &numConfigs);

    /* EGL_NATIVE_VISUAL_ID is an attribute of the EGLConfig that is
     * guaranteed to be accepted by ANativeWindow_setBuffersGeometry().
     * As soon as we picked a EGLConfig, we can safely reconfigure the
     * ANativeWindow buffers to match, using EGL_NATIVE_VISUAL_ID. */
    eglGetConfigAttrib(display, config, EGL_NATIVE_VISUAL_ID, &format);

    ANativeWindow_setBuffersGeometry(engine->app->window, 0, 0, format);

    surface = eglCreateWindowSurface(display, config, engine->app->window,
            NULL);
    context = eglCreateContext(display, config, NULL, NULL);

    if (eglMakeCurrent(display, surface, surface, context) == EGL_FALSE) {
        LOGW("Unable to eglMakeCurrent");
        return -1;
    }

    eglQuerySurface(display, surface, EGL_WIDTH, &w);
    eglQuerySurface(display, surface, EGL_HEIGHT, &h);

    engine->display = display;
    engine->context = context;
    engine->surface = surface;
    engine->width = w;
    engine->height = h;
    engine->state.angle = 0;

    // Initialize GL state.
    glHint(GL_PERSPECTIVE_CORRECTION_HINT, GL_FASTEST);
    glEnable(GL_CULL_FACE);
    glShadeModel(GL_SMOOTH);
    glDisable(GL_DEPTH_TEST);

    return 0;
}

/**
 * Just the current frame in the display.
 */
static void engine_draw_frame(struct engine* engine) {
    if (engine->display == NULL) {
        // No display.
        return;
    }

    // Just fill the screen with a color.
    glClearColor(((float) engine->state.x) / engine->width, engine->state.angle,
            ((float) engine->state.y) / engine->height, 1);
    glClear(GL_COLOR_BUFFER_BIT);

    eglSwapBuffers(engine->display, engine->surface);
}

/**
 * Tear down the EGL context currently associated with the display.
 */
static void engine_term_display(struct engine* engine) {
    if (engine->display != EGL_NO_DISPLAY) {
        eglMakeCurrent(engine->display, EGL_NO_SURFACE, EGL_NO_SURFACE,
                EGL_NO_CONTEXT);
        if (engine->context != EGL_NO_CONTEXT) {
            eglDestroyContext(engine->display, engine->context);
        }
        if (engine->surface != EGL_NO_SURFACE) {
            eglDestroySurface(engine->display, engine->surface);
        }
        eglTerminate(engine->display);
    }
    engine->animating = 0;
    engine->display = EGL_NO_DISPLAY;
    engine->context = EGL_NO_CONTEXT;
    engine->surface = EGL_NO_SURFACE;
}

/**
 * Process the next input event.
 */
static int32_t engine_handle_input(struct android_app* app,
        AInputEvent* event) {
    struct engine* engine = (struct engine*) app->userData;
    if (AInputEvent_getType(event) == AINPUT_EVENT_TYPE_MOTION) {
        engine->animating = 1;
        engine->state.x = AMotionEvent_getX(event, 0);
        engine->state.y = AMotionEvent_getY(event, 0);
        return 1;
    }
    return 0;
}

/**
 * Process the next main command.
 */
static void engine_handle_cmd(struct android_app* app, int32_t cmd) {
    struct engine* engine = (struct engine*) app->userData;
    switch (cmd) {
    case APP_CMD_SAVE_STATE:
        // The system has asked us to save our current state.  Do so.
        engine->app->savedState = malloc((size_t)sizeof(struct saved_state));
        *((struct saved_state*) engine->app->savedState) = engine->state;
        engine->app->savedStateSize = sizeof(struct saved_state);
        break;
    case APP_CMD_INIT_WINDOW:
        // The window is being shown, get it ready.
        if (engine->app->window != NULL) {
            engine_init_display(engine);
            engine_draw_frame(engine);
        }
        break;
    case APP_CMD_TERM_WINDOW:
        // The window is being hidden or closed, clean it up.
        engine_term_display(engine);
        break;
    case APP_CMD_GAINED_FOCUS:
        // When our app gains focus, we start monitoring the accelerometer.
        if (engine->accelerometerSensor != NULL) {
            ASensorEventQueue_enableSensor(engine->sensorEventQueue,
                    engine->accelerometerSensor);
            // We'd like to get 60 events per second (in us).
            ASensorEventQueue_setEventRate(engine->sensorEventQueue,
                    engine->accelerometerSensor, (1000L / 60) * 1000);
        }
        break;
    case APP_CMD_LOST_FOCUS:
        // When our app loses focus, we stop monitoring the accelerometer.
        // This is to avoid consuming battery while not being used.
        if (engine->accelerometerSensor != NULL) {
            ASensorEventQueue_disableSensor(engine->sensorEventQueue,
                    engine->accelerometerSensor);
        }
        // Also stop animating.
        engine->animating = 0;
        engine_draw_frame(engine);
        break;
    }
}

/**
 * This is the main entry point of a native application that is using
 * android_native_app_glue.  It runs in its own thread, with its own
 * event loop for receiving input events and doing other things.
 */
void android_main(struct android_app* state) {
    struct engine engine = {0};
    // Make sure glue isn't stripped.
    app_dummy();
    state->userData = &engine;
    state->onAppCmd = engine_handle_cmd;
    state->onInputEvent = engine_handle_input;
    engine.app = state;

    // Prepare to monitor accelerometer
    engine.sensorManager = ASensorManager_getInstance();
    engine.accelerometerSensor = ASensorManager_getDefaultSensor(
            engine.sensorManager, ASENSOR_TYPE_ACCELEROMETER);
    engine.sensorEventQueue = ASensorManager_createEventQueue(
            engine.sensorManager, state->looper, LOOPER_ID_USER, NULL, NULL);

    if (state->savedState != NULL) {
        // We are starting with a previous saved state; restore from it.
        engine.state = *(struct saved_state*) state->savedState;
    }

    // loop waiting for stuff to do.

    while (true) {
        // Read all pending events.
        int ident;
        int events;
        struct android_poll_source* source;

        // If not animating, we will block forever waiting for events.
        // If animating, we loop until all events are read, then continue
        // to draw the next frame of animation.
        while ((ident = ALooper_pollAll(engine.animating ? 0 : -1, NULL,
                &events, (void**) &source)) >= 0) {

            // Process this event.
            if (source != NULL) {
                source->process(state, source);
            }

            // If a sensor has data, process it now.
            if (ident == LOOPER_ID_USER) {
                if (engine.accelerometerSensor != NULL) {
                    ASensorEvent event;
                    while (ASensorEventQueue_getEvents(engine.sensorEventQueue,
                            &event, 1) > 0) {
                        LOGI("accelerometer: x=%f y=%f z=%f", event.acceleration.x, event.acceleration.y, event.acceleration.z);
                    }
                }
            }

            // Check if we are exiting.
            if (state->destroyRequested != 0) {
                engine_term_display(&engine);
                return;
            }
        }

        if (engine.animating) {
            // Done with events; draw next animation frame.
            engine.state.angle += .01f;
            if (engine.state.angle > 1) {
                engine.state.angle = 0;
            }
            engine_draw_frame(&engine);
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279

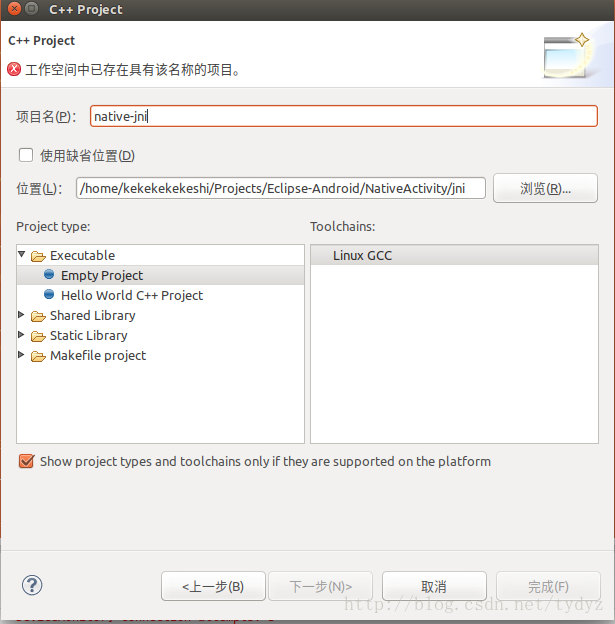

5.在jin里边新建一个c/c++工程

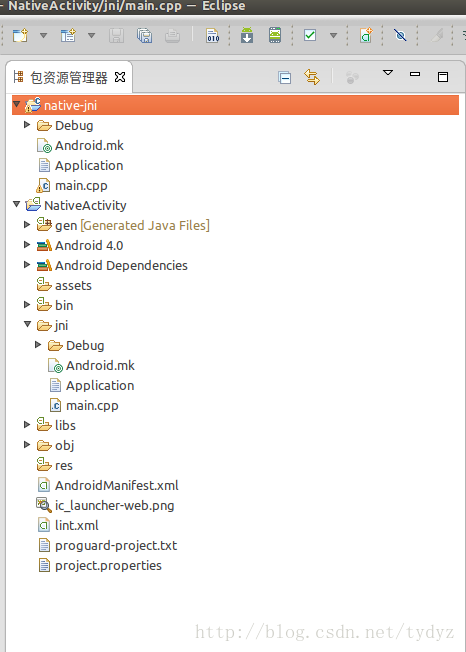

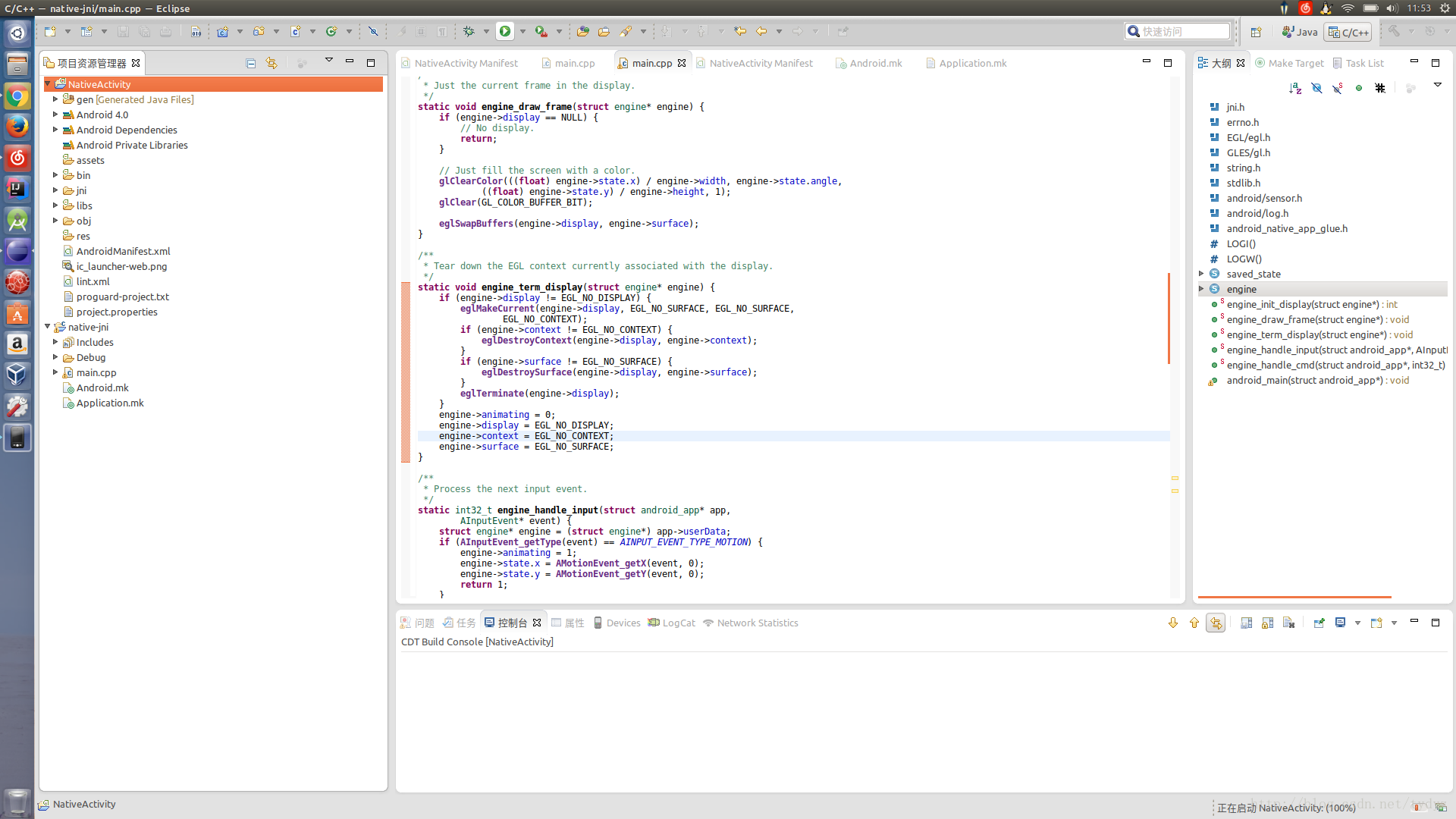

6.然后就可以看到了：

7.然后alt+enter到项目设置，如图将那些设置的变量添加进去

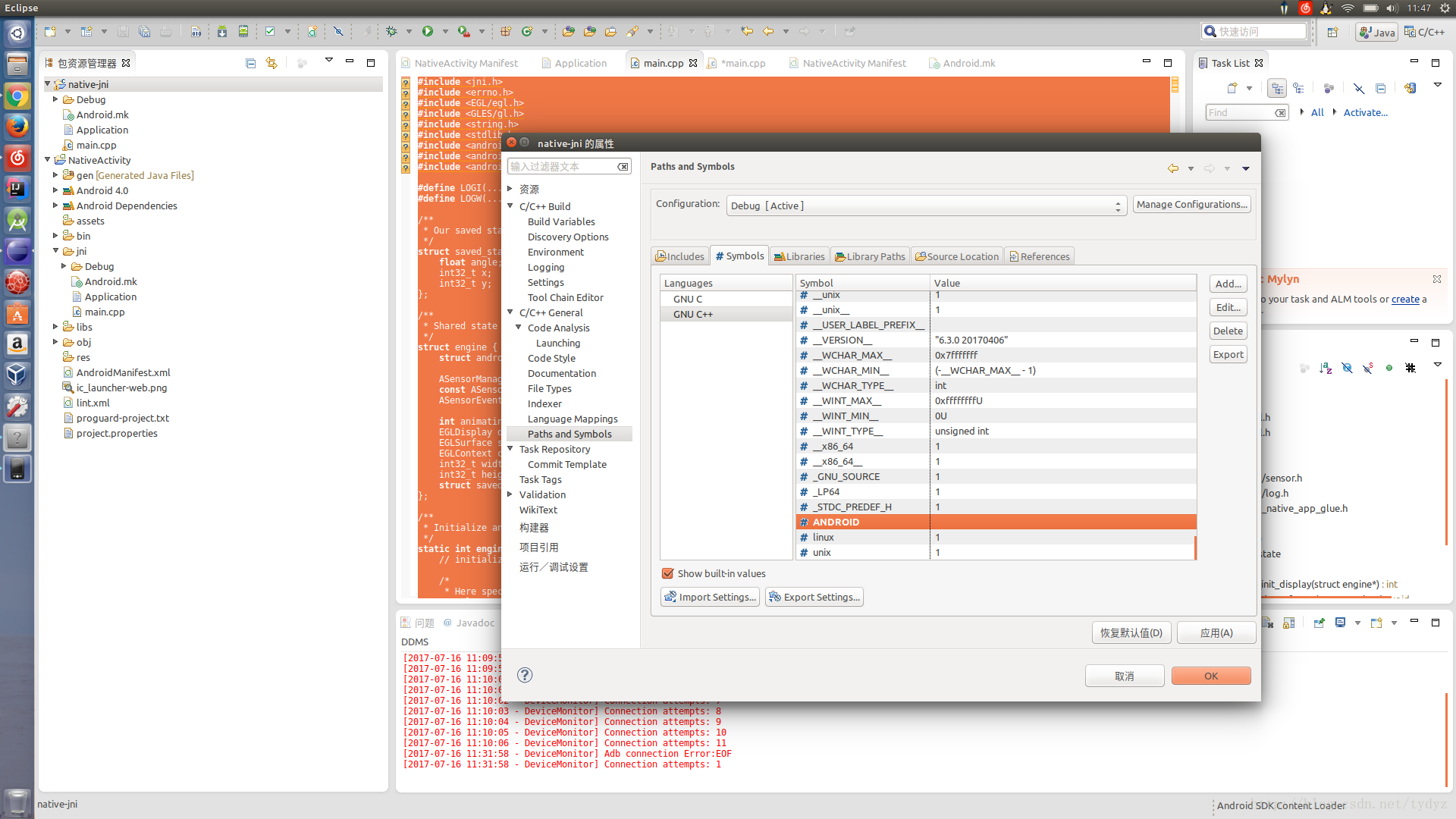

8.同样在这界面里边的sybols里添加一个ANDROID值不填

9.切换到c/c++视图：

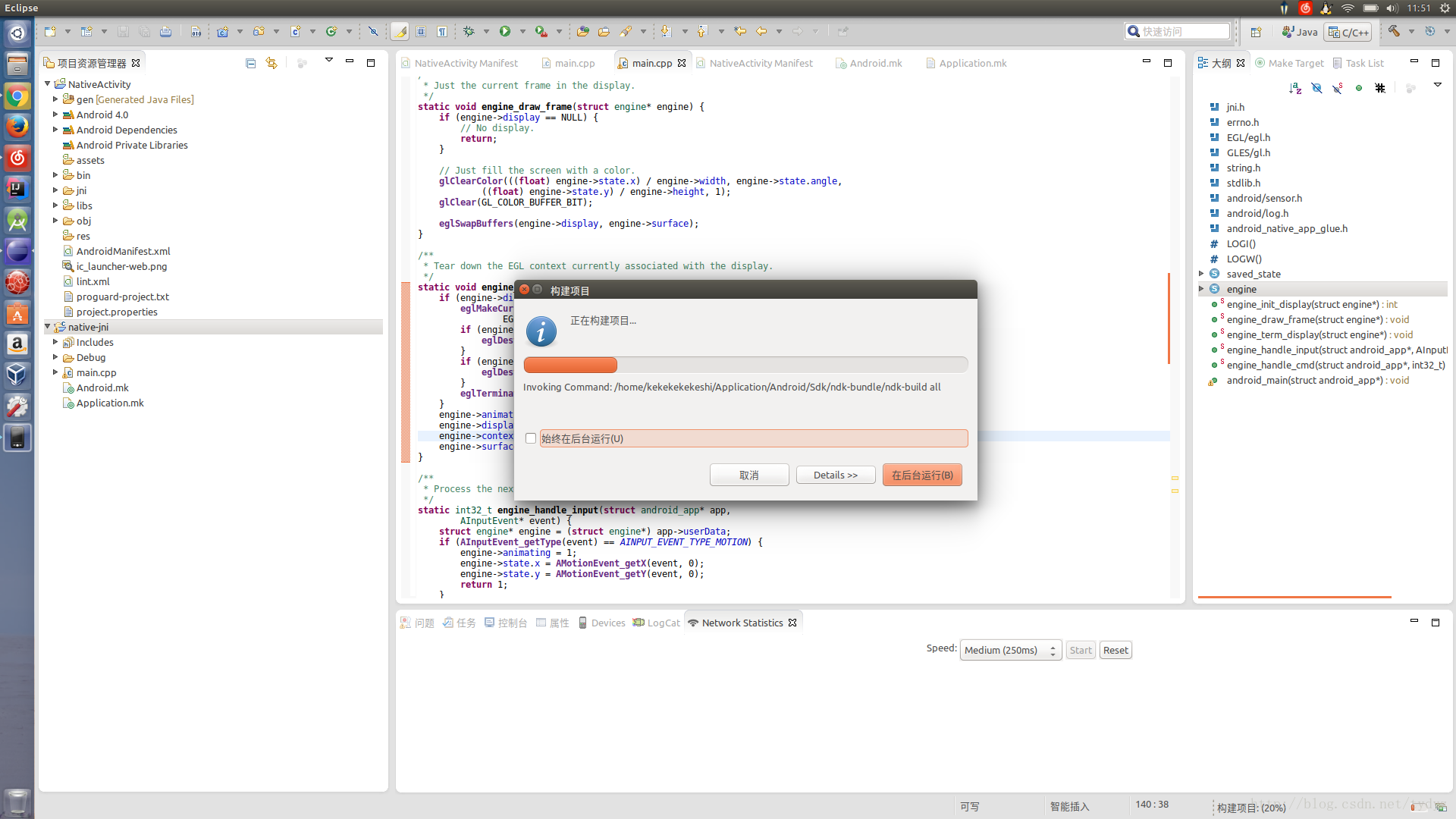

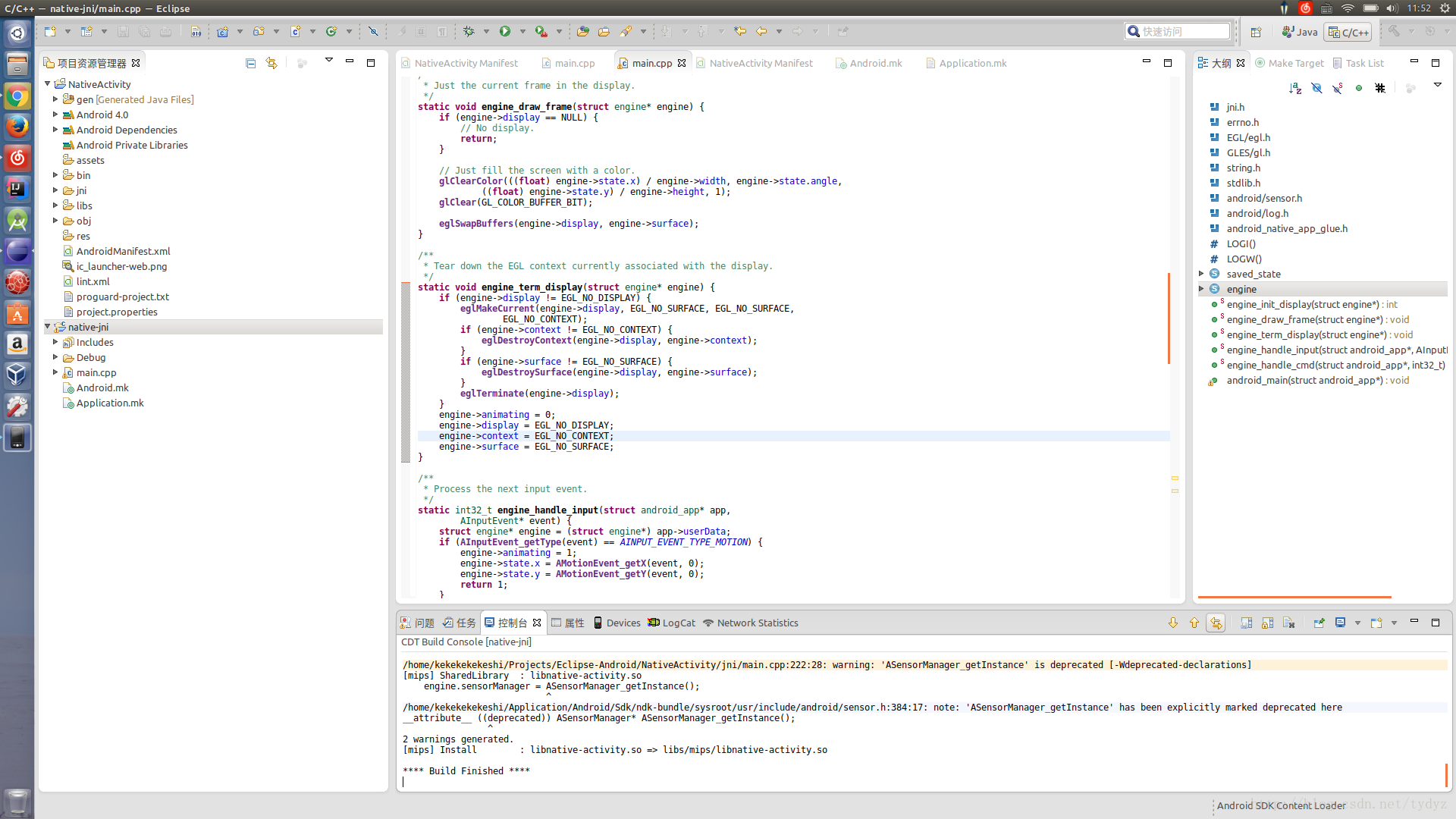

然后按下那锤子进行编译库：


10.将光标定回安卓项目并点击运行：

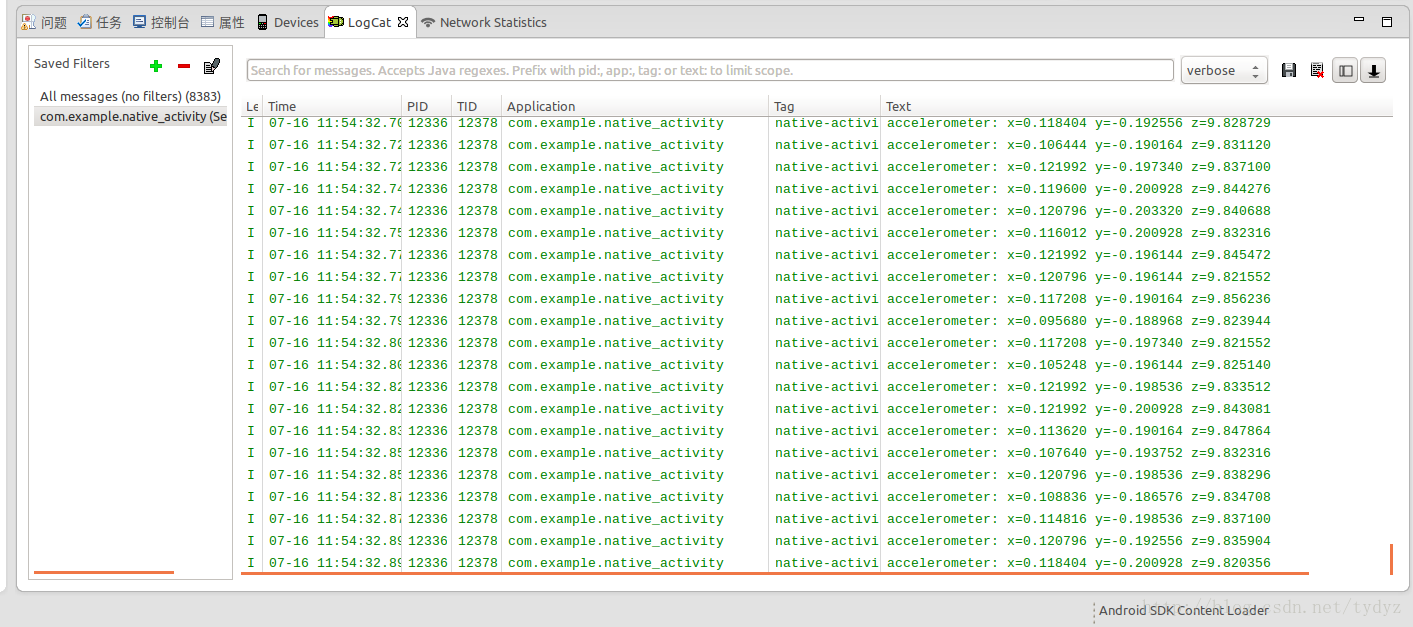

11.我们看下logcat里的包名正常运行的：
