python用turtle绘图库做科学绘图工具_turtle 画科技图

作者：2023面试高手 | 2024-03-13 19:17:45

踩

turtle 画科技图

turtle绘图库做科学绘图工具

前言
开始
附录A：如何使用：
附录B：更方便的matplotlib如何使用：
- - - - 作者

前言

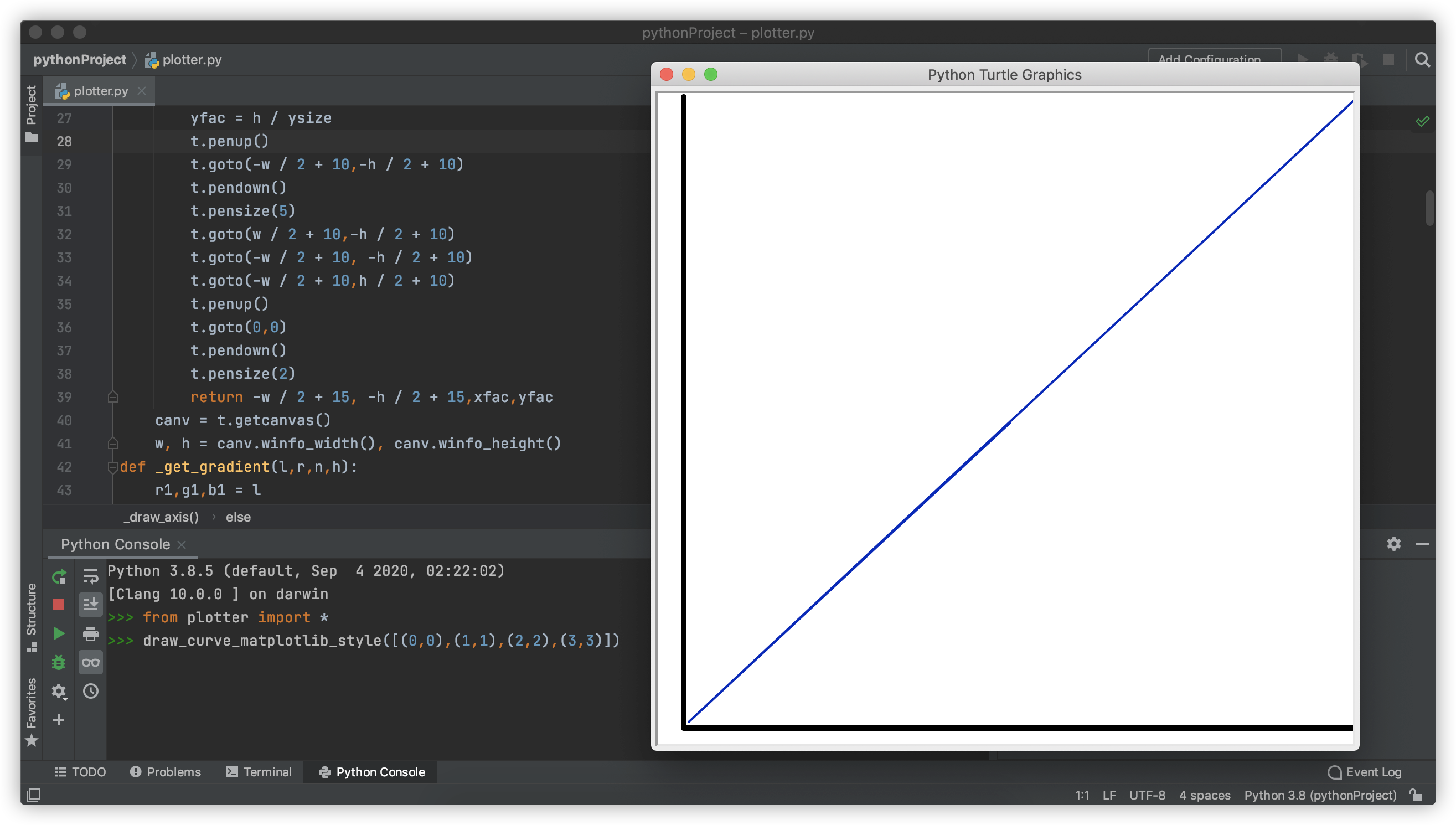

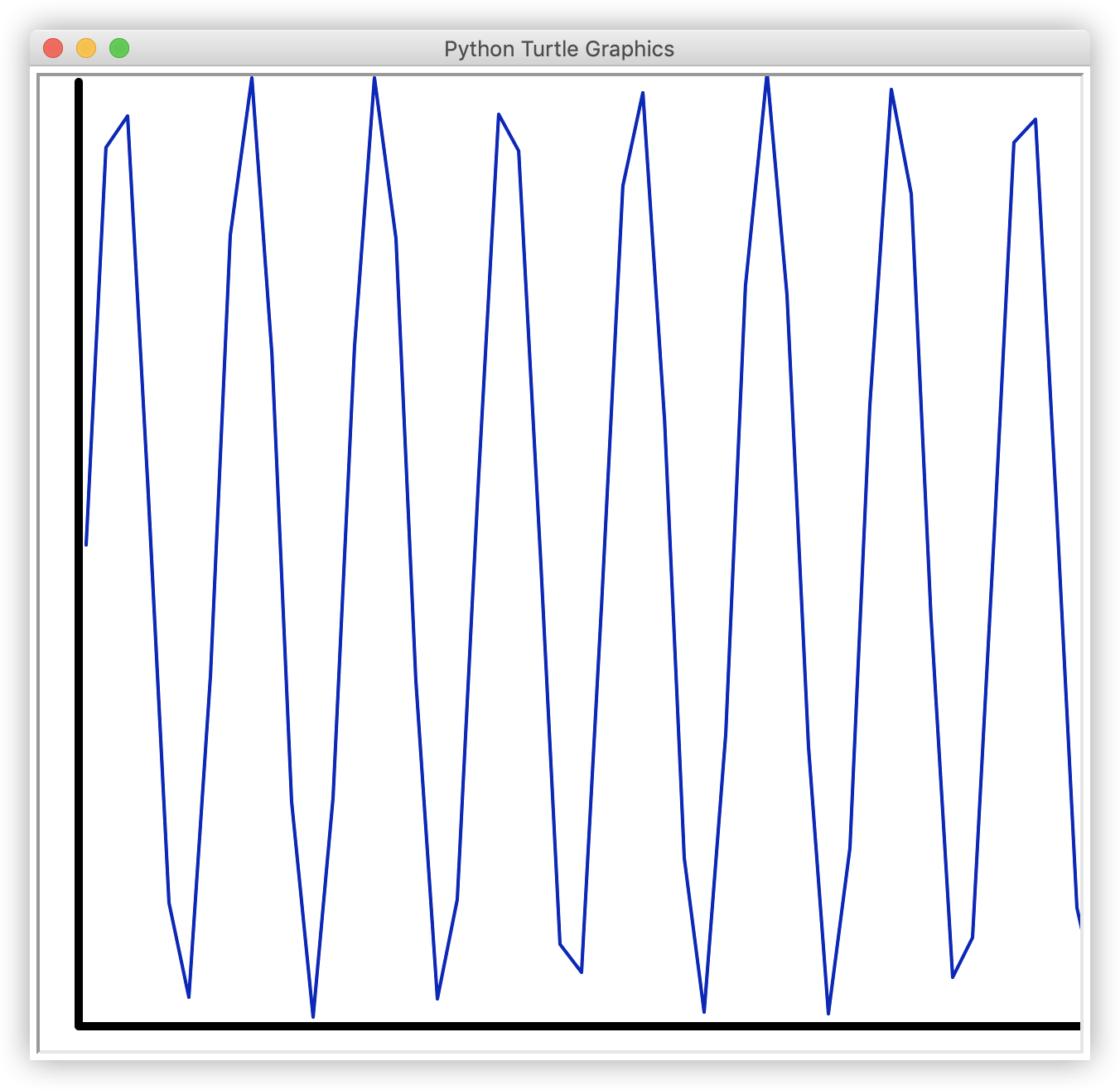

plotter绘制matplotlib风格图

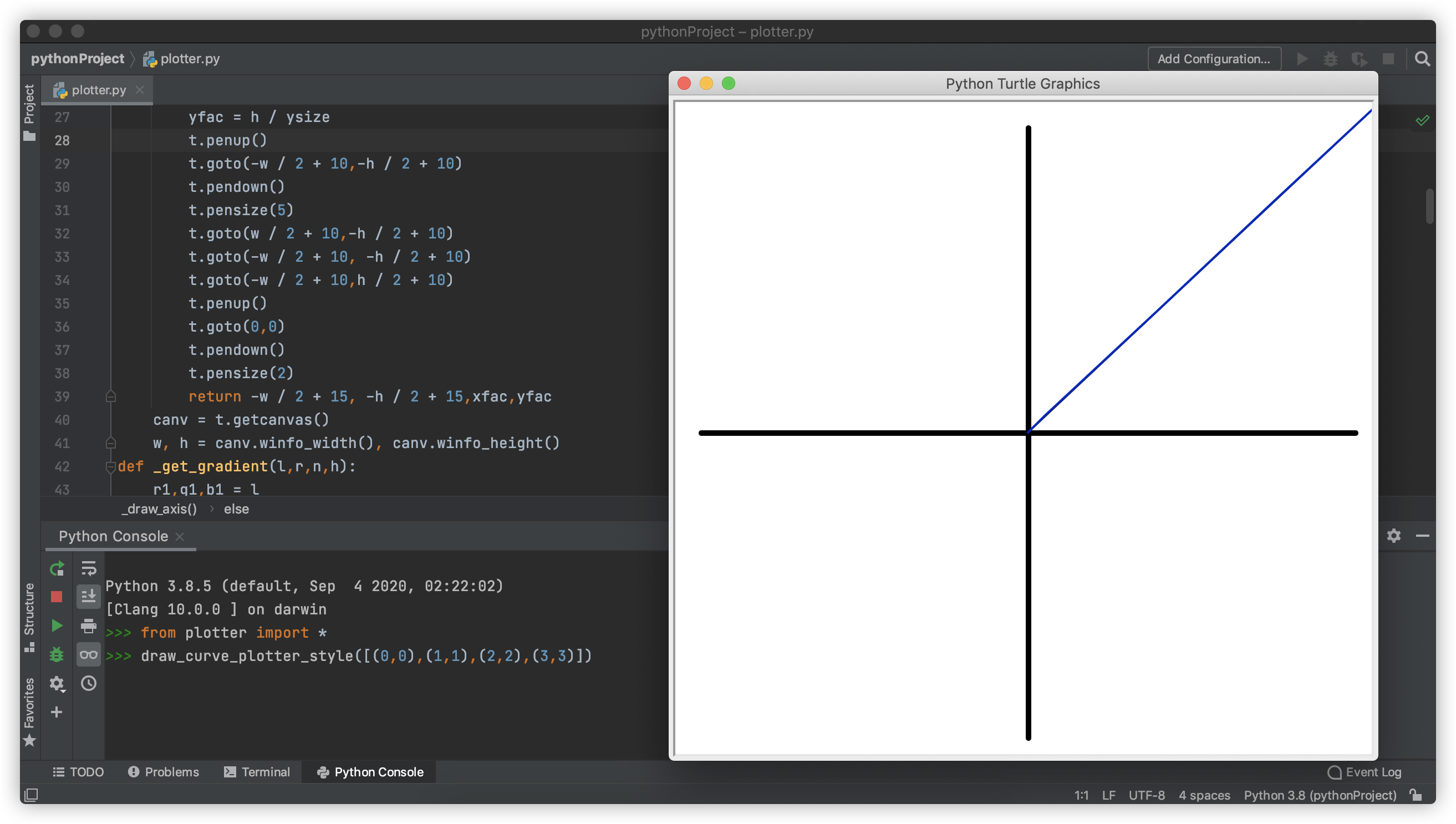

plotter绘制plotter风格图

这个项目还是有一点小瑕疵的，那就是总是超出那么一点来和没有加入圆滑处理

开始

献上代码

import turtle as t
t.colormode(255)
t.speed(0)
t.delay(0)
def _draw_axis(op,xlab,ylab,p):
    t.hideturtle()
    xsize = max([i[0] for i in p]) + abs(min([i[0] for i in p]))
    ysize = max([i[1] for i in p]) + abs(min([i[1] for i in p]))
    canv = t.getcanvas()
    w,h = canv.winfo_width() - 30,canv.winfo_height() - 30
    if(op == 2):
        xfac = w / 2 / xsize
        yfac = h / 2 / ysize
        t.penup()
        t.goto(0,0)
        t.pendown()
        t.pensize(5)
        t.goto(0,h / 2 - 10)
        t.goto(0,-h / 2 + 10)
        t.goto(0,0)
        t.goto(w / 2 - 10,0)
        t.goto(-w / 2 + 10,0)
        t.goto(0,0)
        t.pensize(2)
        return 15,15,xfac,yfac
    else:
        bx = abs(min(min([i[0] for i in p]), 0))
        by = abs(min(min([i[1] for i in p]), 0))
        bx = int(bx) if(int(bx) == bx) else int(bx) + 1
        by = int(by) if(int(by) == by) else int(by) + 1
        xfac = w / xsize
        yfac = h / ysize
        bx,by = bx * xfac,by * yfac
        t.penup()
        t.goto(-w / 2 + 10,-h / 2 + 10)
        t.pendown()
        t.pensize(5)
        t.goto(w / 2 + 10,-h / 2 + 10)
        t.goto(-w / 2 + 10, -h / 2 + 10)
        t.goto(-w / 2 + 10,h / 2 + 10)
        t.penup()
        t.goto(0,0)
        t.pendown()
        t.pensize(2)
        return -w / 2 + 15 + bx, -h / 2 + 15 + by,xfac,yfac
def _get_gradient(l,r,n,h):
    r1,g1,b1 = l
    r2,g2,b2 = r
    f1 = float(n)
    f2 = float(h - n)
    r3 = int(r1 * f1 + r2 * f2)
    g3 = int(g1 * f1 + g2 * f2)
    b3 = int(b1 * f1 + b2 * f2)
    return (r3,b3,g3)
def draw_curve_matplotlib_style(points,xlabel = '',ylabel = '',linecolor=(0,0,190)):
    xf,yf,xfac,yfac = _draw_axis(1,xlabel,ylabel,points)
    t.pencolor(linecolor)
    t.penup()
    t.goto(points[0][0] + xf,points[0][1] + yf)
    t.pendown()
    for i in points:
        x, y = i
        x, y = x * xfac, y * yfac
        t.goto(x + xf,y + yf)
    t.mainloop()
def draw_scatter_matplotlib_style(points,xlabel = '',ylabel = '',pointcolor=(0,0,190),pointr=1):
    xf,yf,xfac,yfac = _draw_axis(1, xlabel, ylabel,points)
    t.pencolor(pointcolor)
    t.fillcolor(pointcolor)
    for i in points:
        x,y = i
        x,y = x * xfac,y * yfac
        t.penup()
        t.goto(x + xf,y + yf)
        t.pendown()
        t.begin_fill()
        t.circle(pointr)
        t.end_fill()
    t.mainloop()
def draw_contour_matplotlib_style(points,xlabel = '',ylabel = '',low=(0,50,50),high=(0,255,255)):
    xf,yf,xfac,yfac = _draw_axis(1,xlabel,ylabel,points)
    plot = {}
    highest = float('-inf')
    for i in points:
        x, y, z = i
        highest = max(highest, y)
        if (y in plot):
            plot[y].append((x, z))
        else:
            plot[y] = [(x, z)]

    for i in plot:
        t.penup()
        t.goto(plot[i][0][0] + xf,plot[i][0][1] + yf)
        t.pendown()
        t.fillcolor(_get_gradient(low, high, i, highest))
        t.begin_fill()
        for j in plot[i]:
            x, y = j
            x, y = x * xfac, y * yfac
            t.goto(x + xf, y + yf)
        t.end_fill()
    t.mainloop()
def draw_bar_chart_matplotlib_style(points,xlabel = '',ylabel = '',barcolor=(0,0,190),barwidth=5):
    xf,yf,xfac,yfac = _draw_axis(1,xlabel,ylabel,points)
    half_width = barwidth / 2
    t.pencolor(barcolor)
    t.fillcolor(barcolor)
    for i in points:
        x,y = i
        x, y = x * xfac, y * yfac
        t.penup()
        t.goto(x - half_width + xf,yf)
        t.pendown()
        t.begin_fill()
        t.goto(x + half_width + xf,yf)
        t.goto(x + half_width + xf,y + yf)
        t.goto(x - half_width + xf, y + yf)
        t.goto(x - half_width + xf, yf)
        t.end_fill()
    t.mainloop()
def draw_curve_plotter_style(points,xlabel = '',ylabel = '',linecolor=(0,0,190)):
    xf,yf,xfac,yfac = _draw_axis(2,xlabel,ylabel,points)
    t.pencolor(linecolor)
    t.penup()
    t.goto(points[0][0] + xf, points[0][1] + yf)
    t.pendown()
    t.begin_fill()
    for i in points:
        x, y = i
        x, y = x * xfac, y * yfac
        t.goto(x + xf, y + yf)
    t.end_fill()
    t.mainloop()
def draw_scatter_plotter_style(points,xlabel = '',ylabel = '',pointcolor=(0,0,190),pointr=1):
    xf,yf,xfac,yfac = _draw_axis(2,xlabel,ylabel,points)
    t.pencolor(pointcolor)
    t.fillcolor(pointcolor)
    for i in points:
        x, y = i
        x, y = x * xfac, y * yfac
        t.penup()
        t.goto(x + xf, y + yf)
        t.pendown()
        t.begin_fill()
        t.circle(pointr)
        t.end_fill()
    t.mainloop()
def draw_contour_plotter_style(points,xlabel = '',ylabel = '',low=(0,50,50),high=(0,255,255)):
    xf,yf,xfac,yfac = _draw_axis(2,xlabel,ylabel,points)
    plot = {}
    highest = float('-inf')
    for i in points:
        x,y,z = i
        highest = max(highest,y)
        if(y in plot):
            plot[y].append((x,z))
        else:
            plot[y] = [(x,z)]
    for i in plot:
        t.fillcolor(_get_gradient(low,high,i,highest))
        t.penup()
        t.goto(plot[i][0][0] + xf, plot[i][0][1] + yf)
        t.pendown()
        t.begin_fill()
        for j in plot[i]:
            x, y = j
            x, y = x * xfac, y * yfac
            t.goto(x + xf, y + yf)
        t.end_fill()
    t.mainloop()
def draw_bar_chart_plotter_style(points,xlabel = '',ylabel = '',barcolor=(0,0,190),barwidth=5):
    xf,yf,xfac,yfac = _draw_axis(2,xlabel,ylabel,points)
    half_width = barwidth / 2
    t.pencolor(barcolor)
    t.fillcolor(barcolor)
    for i in points:
        x, y = i
        x, y = x * xfac, y * yfac
        t.penup()
        t.goto(x - half_width + xf, yf)
        t.pendown()
        t.begin_fill()
        t.goto(x + half_width + xf, yf)
        t.goto(x + half_width + xf, y + yf)
        t.goto(x - half_width + xf, y + yf)
        t.goto(x - half_width + xf, yf)
        t.end_fill()
    t.mainloop()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189

这次代码比较冗长，就讲一下思路和重点代码哈，剩下的自己应该能理解的了。

画图部分

曲线图：每一次使用goto函数去到一个需要画的点即可

散点图：每一次提笔并goto到需要画的点然后落笔画一个圆

等高线：按照高度画曲线图，并以用如下 $\downarrow$ 代码产生的颜色填充

def _get_gradient(l,r,n,h):
    r1,g1,b1 = l
    r2,g2,b2 = r
    f1 = float(n)
    f2 = float(h - n)
    r3 = int(r1 * f1 + r2 * f2)
    g3 = int(g1 * f1 + g2 * f2)
    b3 = int(b1 * f1 + b2 * f2)
    return (r3,b3,g3)
1
2
3
4
5
6
7
8
9

即将 $c_1$ 和 $c_2$ 按比例混合。

柱状图： goto到要画的点后画一个长方形并填充即可

画坐标轴

def _draw_axis(op,xlab,ylab,p):
    t.hideturtle()
    xsize = max([i[0] for i in p]) + abs(min([i[0] for i in p]))
    ysize = max([i[1] for i in p]) + abs(min([i[1] for i in p]))
    canv = t.getcanvas()
    w,h = canv.winfo_width() - 30,canv.winfo_height() - 30
    if(op == 2):
        xfac = w / 2 / xsize
        yfac = h / 2 / ysize
        t.penup()
        t.goto(0,0)
        t.pendown()
        t.pensize(5)
        t.goto(0,h / 2 - 10)
        t.goto(0,-h / 2 + 10)
        t.goto(0,0)
        t.goto(w / 2 - 10,0)
        t.goto(-w / 2 + 10,0)
        t.goto(0,0)
        t.pensize(2)
        return 15,15,xfac,yfac
    else:
        bx = abs(min(min([i[0] for i in p]), 0))
        by = abs(min(min([i[1] for i in p]), 0))
        bx = int(bx) if(int(bx) == bx) else int(bx) + 1
        by = int(by) if(int(by) == by) else int(by) + 1
        xfac = w / xsize
        yfac = h / ysize
        bx,by = bx * xfac,by * yfac
        t.penup()
        t.goto(-w / 2 + 10,-h / 2 + 10)
        t.pendown()
        t.pensize(5)
        t.goto(w / 2 + 10,-h / 2 + 10)
        t.goto(-w / 2 + 10, -h / 2 + 10)
        t.goto(-w / 2 + 10,h / 2 + 10)
        t.penup()
        t.goto(0,0)
        t.pendown()
        t.pensize(2)
        return -w / 2 + 15 + bx, -h / 2 + 15 + by,xfac,yfac
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

就是按照要求画两条线，并计算xf,yf,xfac,yfac分别代表曲线的位置(xf,yf)和曲线在两个方向上的缩放倍数(xfac,yfac)。

计算方法如下 $\downarrow$
$o p = 1$ 时：
xf $=$ yf $= 15$ ，也就是坐标系位置 $+$ 线宽。
xfac $=$ 画布宽度 $\div$ $x$ 轴长度
yfac $=$ 画布高度 $\div$ $y$ 轴长度

$o p = 2$ 时：
xf $=$ 坐标系 $x$ 轴位置 $+$ 线宽 $+$ $x$ 轴最低位置与0中的最小值的绝对值向上取整(这里这么长的的东西是为了让曲线在图里面)
yf $=$ 坐标系 $y$ 轴位置 $+$ 线宽 $+$ $y$ 轴最低位置与0中的最小值的绝对值向上取整(这里这么长的的东西是为了让曲线在图里面)
xfac $=$ 画布宽度 $\div$ $x$ 轴长度
yfac $=$ 画布高度 $\div$ $y$ 轴长度

项目github

github传送门

附录A：如何使用：

格式为draw_..._matplotlib_style的为matplotlib风格的绘图函数
格式为draw_..._plotter_style的为plotter原生风格的绘图函数
另...可以为curve(曲线图)、scatter(散点图)、contour(等高线)、bar_chart
参数请自行查看源代码，每个函数中的points参数格式是 $[(x_1,y_1,z_1),(x_2,y_2,z_2),\cdots]$ (等高线contour函数)或 $[(x_1,y_1),(x_2,y_2),\cdots]$ (其他函数)

附录B：更方便的matplotlib如何使用：

英文官网
 中文官网

作者

hit-road

拜拜,下课!
