U3D 动态加载资源

1、Resource.load 加载资源

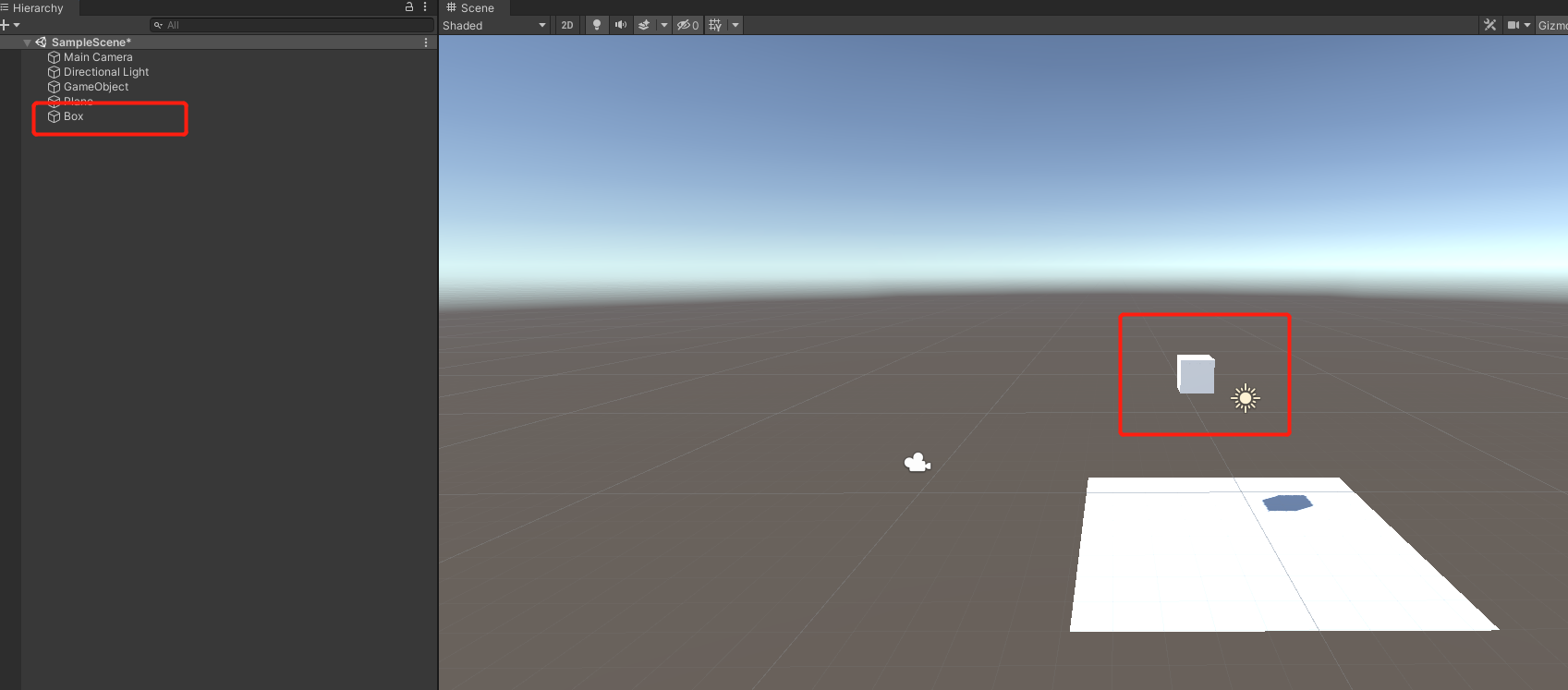

1.1、场景中添加3D模型

1.2 添加预设文件

将添加的模型文件存放到 Assets->Resources->Prefabs 目录下（没有此目录的创建目录）

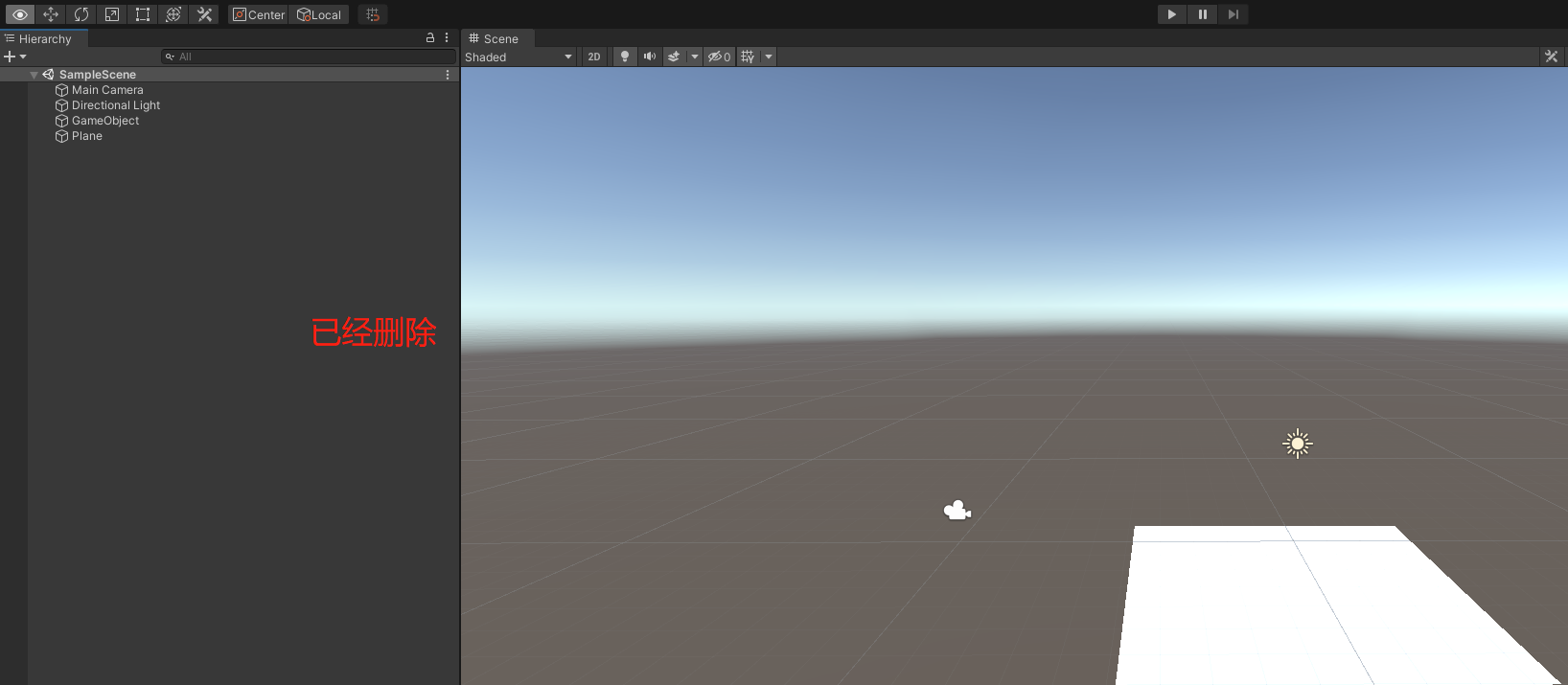

1.3 删除场景中的模型

1.4 创建加载 模型脚本

脚本资源存放在 Assets->Script目录下

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class CreateBoxScript : MonoBehaviour
{


    GameObject boxPrefab;
    Texture tex;
    // Start is called before the first frame update
    void Start()
    {
        ///
        boxPrefab = Resources.Load<GameObject>("Prefabs/box");
        tex = Resources.Load<Texture>("Images/aaa");

        for (int i = -2; i < 3; i++) {

            for (int j = -2; j < 3; j++)
            {

                if (Mathf.Abs(i) == 2|| Mathf.Abs(j)==2)
                {
                    Vector3  vector3 = new Vector3(i+i*0.1f, 0, j + j * 0.1f);
                    GameObject box= Instantiate(boxPrefab, vector3, Quaternion.identity);

                    box.GetComponent<MeshRenderer>().material.mainTexture = tex;

                    box.AddComponent<Rigidbody>();

                }


            }


        }
    }

    // Update is called once per frame
    void Update()
    {

    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

1.5 将脚本挂在到 Main Camera上

1.6 运行后效果

1.7 总结

Resource.load 方式只能加载Resources目录中的资源

2、AssetBundle 加载资源

2.1 场景中添加3D模型

2.2 创建脚本

创建模型自动旋转的脚本，分别挂载到 添加的两个模型上

一个3D模型自动旋转的脚本

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class FaceAnimation : MonoBehaviour
{

    float speed = 0.5f;

    // Start is called before the first frame update
    void Start()
    {

    }

    // Update is called once per frame
    void Update()
    {

        this.transform.Rotate(Vector3.up*speed);

    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

2.3 添加预设文件

将animationA 添加为预设文件，删除场景中animationA 模型文件

2.4 创建预设文件打包脚本

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEditor;
public class CreateAssetBundle : MonoBehaviour
{


    public GameObject assetBundle;

    public GameObject assetBundlePrefab;


    /**
     *   选中文件 单独打包
     *
     */

    [MenuItem("Custom Editor/CreateABMain")]
    static void CreateAssetBundleMain() {

        // 打包选中的游戏对象，获取到在 Asset 下选中的资源文件


        Object[] selectedAsset = Selection.GetFiltered(typeof(Object),SelectionMode.DeepAssets);



        AssetBundleBuild [] bundleMap=new AssetBundleBuild[selectedAsset.Length];

        for (int i = 0; i < selectedAsset.Length; i++)
        {

            bundleMap[i].assetBundleName = selectedAsset[i].name;

            string sourcePath=AssetDatabase.GetAssetPath(selectedAsset[i]);

            bundleMap[i].assetNames = new string[] { sourcePath };

            if (BuildPipeline.BuildAssetBundles(Application.streamingAssetsPath,

                bundleMap,
                BuildAssetBundleOptions.ForceRebuildAssetBundle,
               BuildTarget.Android


                ))
            {

                Debug.Log("打包成功");

            }
            else
            {
                Debug.Log("打包失败");

            }

        }


        AssetDatabase.Refresh();
    }

    /**
     *   选中文件 统一打一个包
     *
     */

    [MenuItem("Custom Editor/CreateABAll")]
    static void CreateAssetBundleAll()
    {

        Caching.ClearCache();

        Object[] selectedAsset = Selection.GetFiltered(typeof(Object), SelectionMode.DeepAssets);

        AssetBundleBuild[] bundleMap = new AssetBundleBuild[1];

        bundleMap[0].assetBundleName = "ALL";
        bundleMap[0].assetNames = new string[selectedAsset.Length];

        for (int i = 0; i < selectedAsset.Length; i++)
        {
            bundleMap[0].assetNames[i]=AssetDatabase.GetAssetPath(selectedAsset[i]);


        }

        if (BuildPipeline.BuildAssetBundles(Application.streamingAssetsPath,

                bundleMap,
                BuildAssetBundleOptions.ForceRebuildAssetBundle,
                BuildTarget.Android
                ))
        {

            Debug.Log("打包成功");

        }
        else
        {
            Debug.Log("打包失败");

        }

    }


}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111

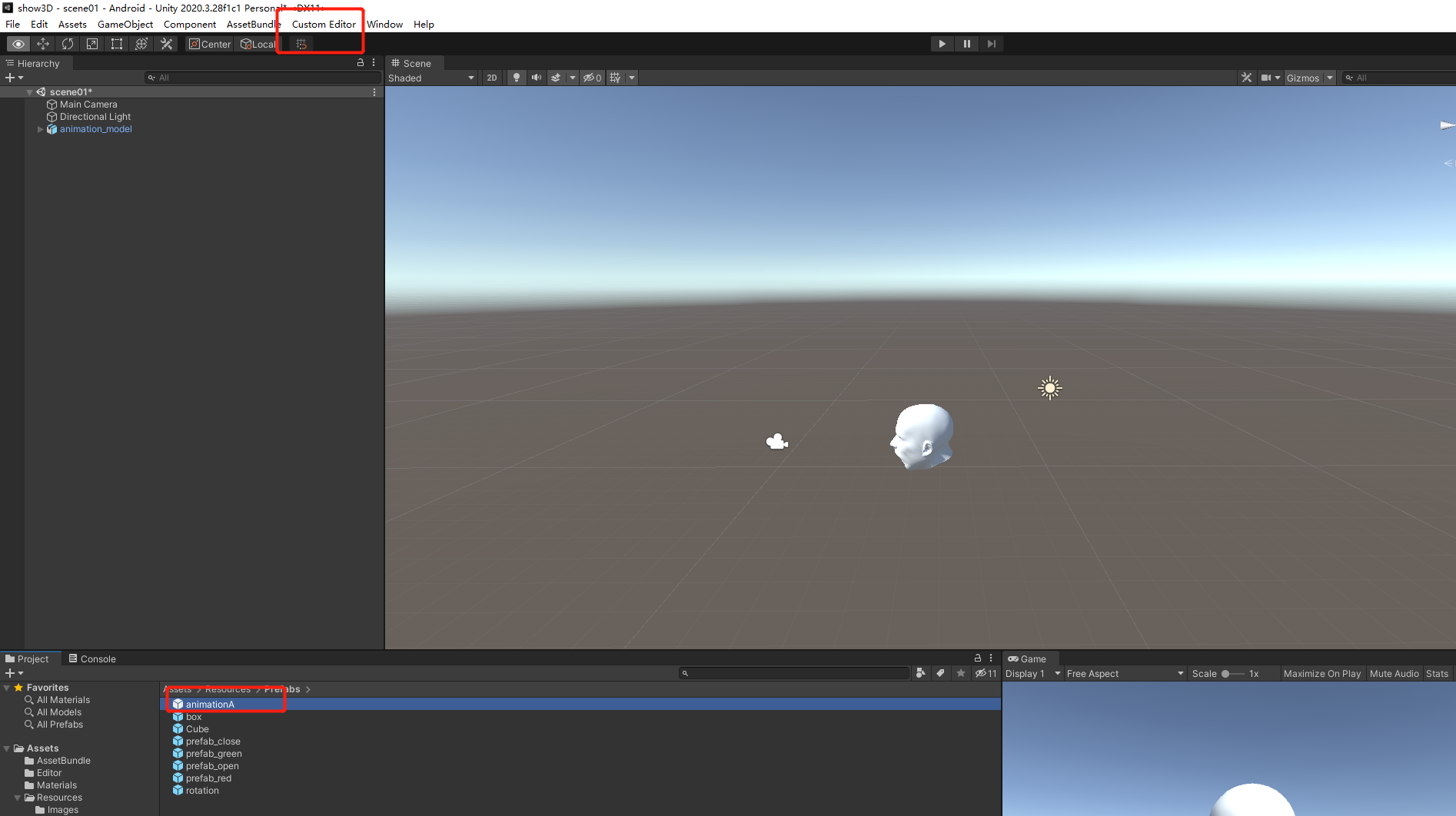

2.4 资源打包

Assets->StreamingAssets 打包生成文件 所在路径

点击后生成后查看 StreamingAssets 文件

2.5 加载打包资源

在Script 文件夹下，创建脚本DecompressScript 脚本，并且 挂载到 Main Camera 上

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class DecompressScript : MonoBehaviour
{


    public string pathUrl;
    // Start is called before the first frame update
    void Start()
    {
        // window 平台下的目录
        //pathUrl = "file://" + Application.streamingAssetsPath + "/";
        // android  平台下的目录
        pathUrl = "file://"+Application.persistentDataPath + "/";



    }

    // Update is called once per frame
    void Update()
    {

    }




    private void OnGUI()
    {
        if (GUILayout.Button("Red Asset", GUILayout.Width(200), GUILayout.Height(100))) {


            Debug.Log("Application.streamingAssetsPath::::" + pathUrl + "/prefab_red");
            //StartCoroutine(LoadSingleAssetBundle(pathUrl + "prefab_red"));
            StartCoroutine(LoadSingleAssetBundle(pathUrl + "prefab_open"));

        }

        if (GUILayout.Button("Green Asset", GUILayout.Width(200), GUILayout.Height(100)))
        {
            Debug.Log("Application.streamingAssetsPath::::" + pathUrl + "/prefab_green");
           // StartCoroutine(LoadSingleAssetBundle(pathUrl + "prefab_green"));
            StartCoroutine(LoadSingleAssetBundle(pathUrl + "prefab_close"));
        }

        if (GUILayout.Button("ALL Asset", GUILayout.Width(200), GUILayout.Height(100)))
        {

            Debug.Log("Application.streamingAssetsPath::::" + pathUrl + "/all");
            //StartCoroutine(LoadAllAssetBundle(pathUrl + "all"));
            StartCoroutine(LoadAllAssetBundle(pathUrl + "all"));
        }


        // 界面上创建按钮 更新资源
        if (GUILayout.Button("Animation Asset", GUILayout.Width(200), GUILayout.Height(100)))
        {

            Debug.Log("Application.streamingAssetsPath::::" + pathUrl + "/animationA");
            //StartCoroutine(LoadSingleAssetBundle(pathUrl + "prefab_red"));

            GameObject.Find("animation_model").SetActive(false);
            StartCoroutine(LoadSingleAssetBundle(pathUrl + "animationA"));

        }

    }



    IEnumerator LoadSingleAssetBundle(string path) {

        WWW bundle=new WWW(path);
        yield return bundle;

        GameObject objPrefab = bundle.assetBundle.LoadAsset(bundle.assetBundle.name)as GameObject;

        GameObject obj
            =Instantiate(objPrefab);



    }
    IEnumerator LoadAllAssetBundle(string path)
    {


        Debug.Log("加载目录 "+ path);
        WWW bundle = new WWW(path);

        yield return bundle;

        GameObject[] assets = bundle.assetBundle.LoadAllAssets<GameObject> ();

        for (int i = 0; i < assets.Length; i++)
        {

            GameObject obj
           = Instantiate(assets[i]);

            yield return obj;

        }

    }

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110

2.6 运行查看效果

2.6.1替换之前的效果

2.6.2替换之后的效果

2.7 Android 平台上更新

2.7.1 修改 解压脚本

pathUrl = "file://"+Application.persistentDataPath + "/";
1

2.72 修改打包脚本

BuildTarget.Android 是android 平台

BuildTarget.StandaloneWindows 是windows平台

 if (BuildPipeline.BuildAssetBundles(Application.streamingAssetsPath,

                bundleMap,
                BuildAssetBundleOptions.ForceRebuildAssetBundle,
                BuildTarget.Android
                ))
1
2
3
4
5
6

2.7.3 android 平台的 资源包放置路径

将打包好的资源放置到 Android/data/xxx.xx.xx/files/ 目录下
