build a four-bit shift register that also acts as a down counter. data is sh

目录

3.3  Building Larger Circuits

1 . Counter with period 1000

2. 4-bit shift register and down counter

3. FSM: Sequence 1101 recognizer

4. FSM: Enable shift register

 5. FSM: The complete FSM

6. The complete timer

7. FSM: One-hot logic equations

3.3  Building Larger Circuits

1 . Counter with period 1000

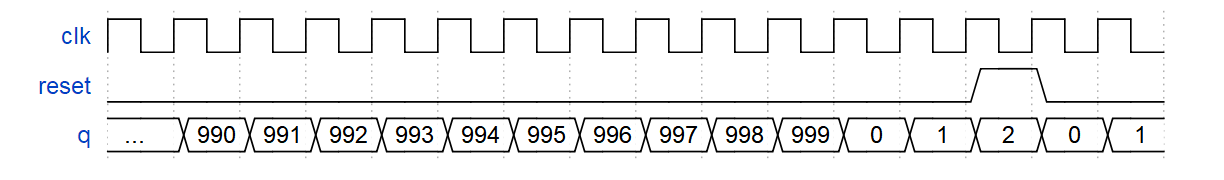

Build a counter that counts from 0 to 999, inclusive, with a period of 1000 cycles. The reset input is synchronous, and should reset the counter to 0.

  1. module top_module (
  2.     input clk,
  3.     input reset,
  4.     output [9:0] q);
  5.
  6.     always @(posedge clk)begin
  7.         if(reset) q<=10'd0;
  8.         else if(q=='d999) q<=10'd0;
  9.         else q<=q+1'b1;
  10.     end
  11.
  12. endmodule

2. 4-bit shift register and down counter

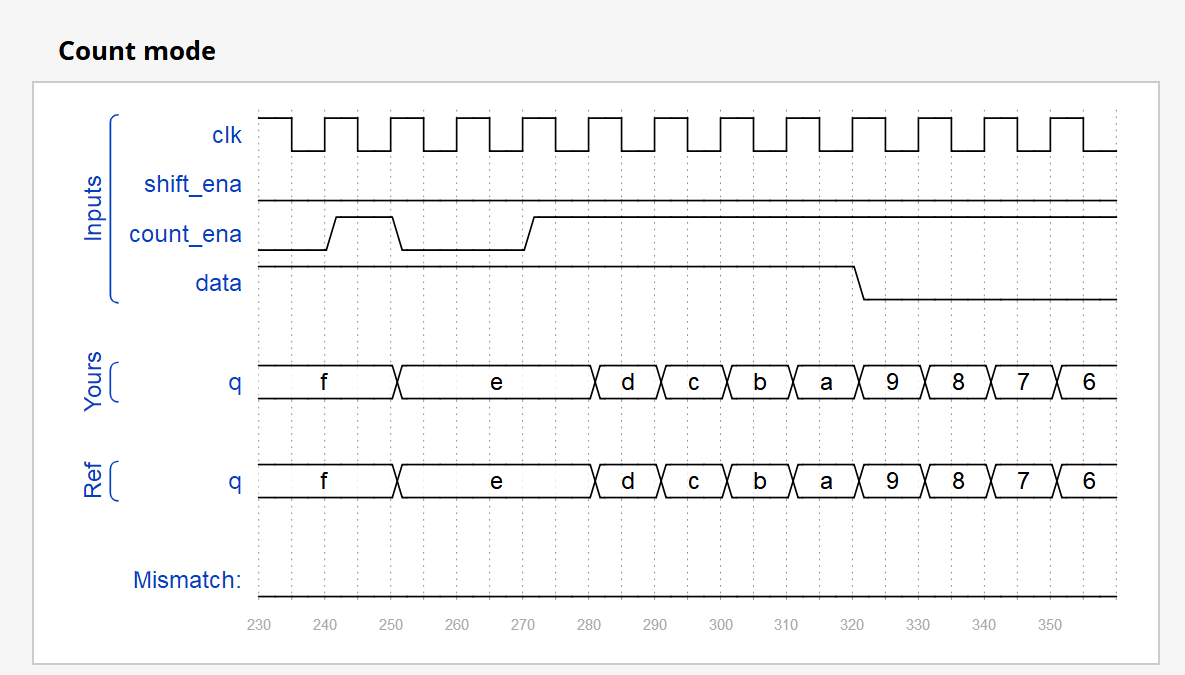

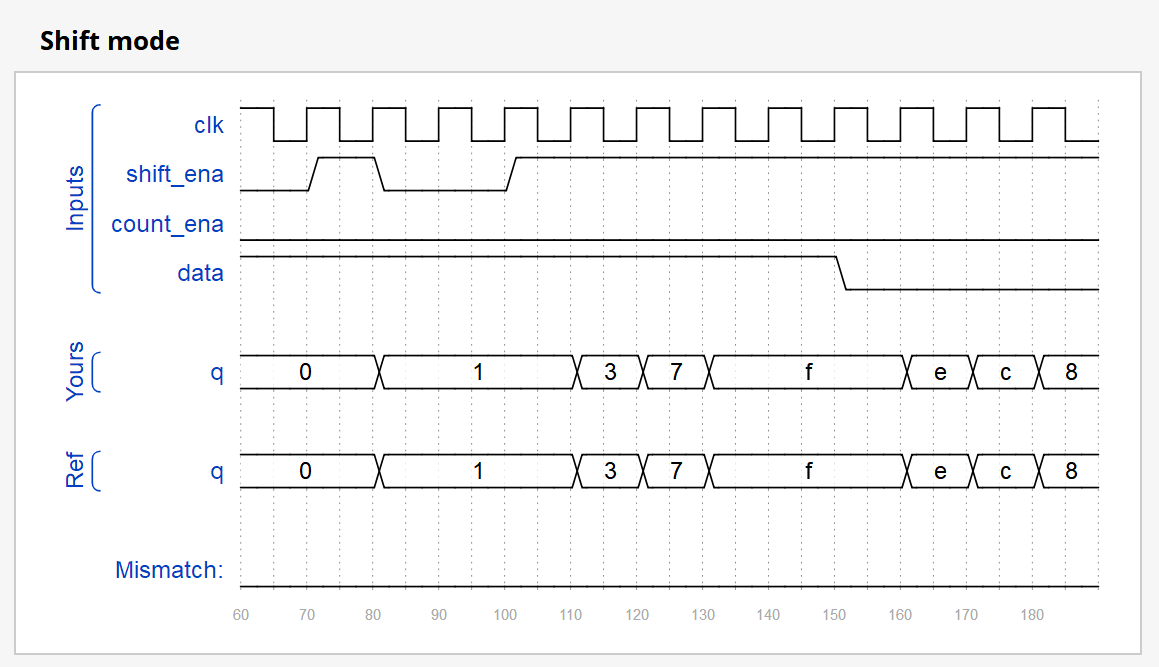

Build a four-bit shift register that also acts as a down counter. Data is shifted in most-significant-bit first when shift_ena is 1. The number currently in the shift register is decremented when count_ena is 1. Since the full system doesn't ever use shift_ena and count_ena together, it does not matter what your circuit does if both control inputs are 1 (This mainly means that it doesn't matter which case gets higher priority).

shift_ena 为1的时候，接收数据往左移， count_ena 为1的时候，数据递减，其他时刻保持不变。不考虑这两个使能信号的优先级，选择case语句。

  1. module top_module (
  2.     input clk,
  3.     input shift_ena,
  4.     input count_ena,
  5.     input data,
  6.     output reg[3:0] q);
  7.
  8.     always @(posedge clk)begin
  9.         case({shift_ena,count_ena})
  10.             2'b00:q<=q;
  11.             2'b01:q<=q-1'b1;
  12.             2'b10:q<={q[2:0],data};
  13.             2'b11:q<=q;
  14.         endcase
  15.     end
  16.
  17.  endmodule

3. FSM: Sequence 1101 recognizer

Build a finite-state machine that searches for the sequence 1101 in an input bit stream. When the sequence is found, it should set start_shiftingto 1, forever, until reset. Getting stuck in the final state is intended to model going to other states in a bigger FSM that is not yet implemented. We will be extending this FSM in the next few exercises.

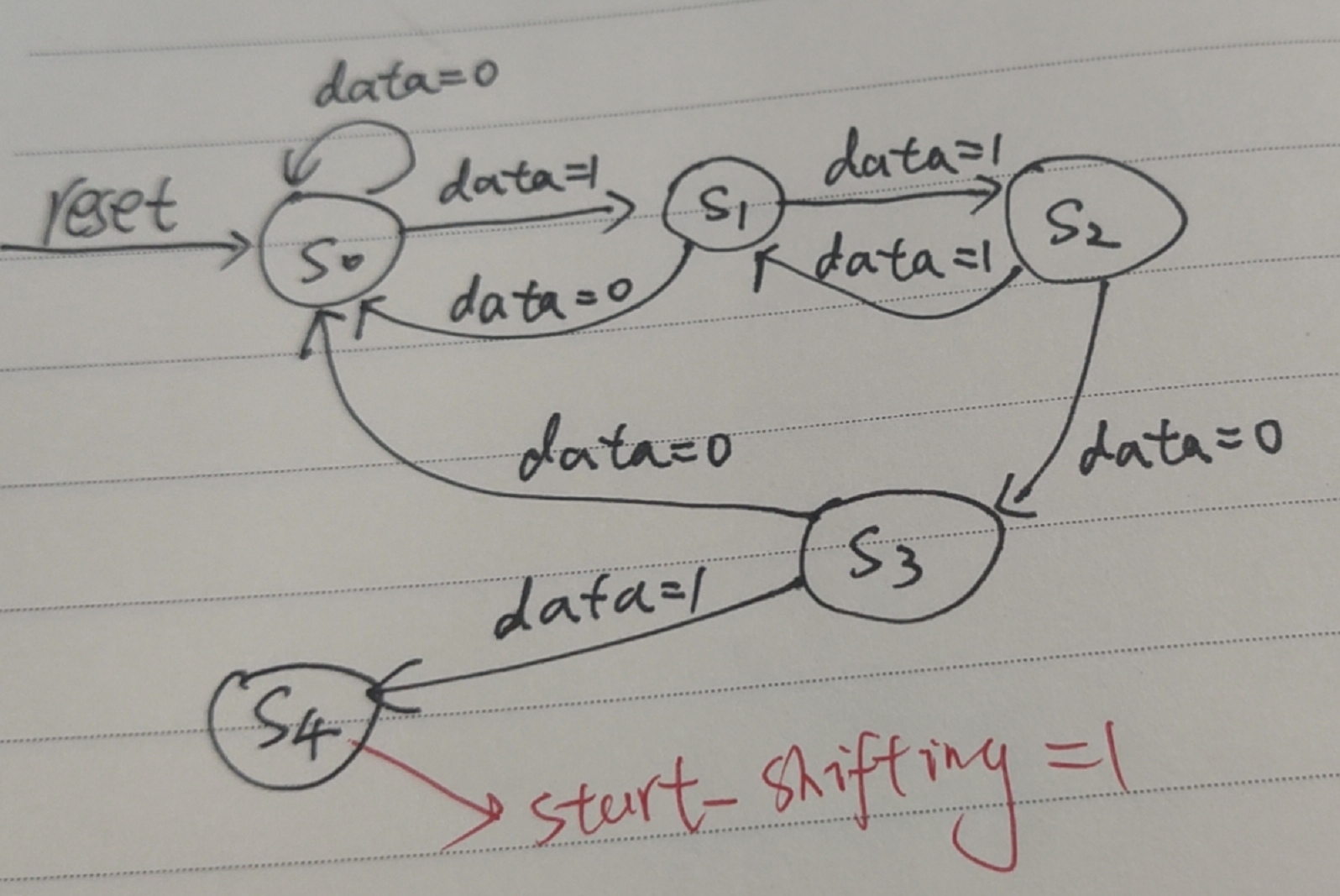

序列检测：把状态转移图画出来就好写代码了。

  1. module top_module (
  2.     input clk,
  3.     input reset,      // Synchronous reset
  4.     input data,
  5.     output start_shifting);
  6.
  7.     parameter S0=0,S1=1,S2=2,S3=3,S4=4;
  8.     reg [2:0] state,next_state;
  9.
  10.     always @(*)begin
  11.         case(state)
  12.             S0:begin
  13.                 if(data) next_state=S1;
  14.                 else next_state=S0;
  15.             end
  16.             S1:begin
  17.                 if(data) next_state=S2;
  18.                 else next_state=S0;
  19.             end
  20.              S2:begin
  21.                  if(data) next_state=S2;
  22.                 else next_state=S3;
  23.             end
  24.              S3:begin
  25.                  if(data) next_state=S4;
  26.                 else next_state=S0;
  27.             end
  28.             S4:begin
  29.                 next_state=S4;
  30.             end
  31.             default:begin
  32.                 next_state=S0;
  33.             end
  34.         endcase
  35.     end
  36.
  37.     always @(posedge clk)begin
  38.         if(reset) state<=S0;
  39.         else state<=next_state;
  40.     end
  41.
  42.
  43.     assign start_shifting=(state==S4);
  44.     /*
  45.     parameter S0=0,S1=1,S2=2,S3=3,S4=4;
  46.     reg [2:0] cs,ns;
  47.
  48.     always @(*)
  49.         begin
  50.             case (cs)
  51.                 S0:ns=data?S1:S0;
  52.                 S1:ns=data?S2:S0;
  53.                 S2:ns=data?S2:S3;
  54.                 S3:ns=data?S4:S0;
  55.                 S4:ns=data?S4:S4;
  56.             endcase
  57.         end
  58.     always @(posedge clk)
  59.         begin
  60.             if (reset)
  61.                 cs<=S0;
  62.             else
  63.                 cs<=ns;
  64.         end
  65.     assign start_shifting= (cs==S4);
  66.     */
  68. endmodule

4. FSM: Enable shift register

As part of the FSM for controlling the shift register, we want the ability to enable the shift register for exactly 4 clock cycles whenever the proper bit pattern is detected. We handle sequence detection in Exams/review2015_fsmseq, so this portion of the FSM only handles enabling the shift register for 4 cycles.

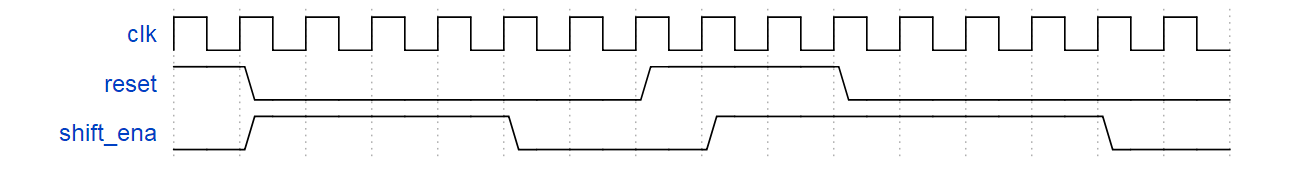

Whenever the FSM is reset, assert shift_ena for 4 cycles, then 0 forever (until reset).

复位信号有效后，shift_ena拉高持续4个时钟周期，其他时刻拉低。

  1. module top_module (
  2.     input clk,
  3.     input reset,      // Synchronous reset
  4.     output shift_ena);
  5.
  6.     reg [2:0]cnt;
  7.
  8.     always @(posedge clk)begin
  9.         if(reset)begin
  10.             cnt<='d0;
  11.             shift_ena<=1'b1;
  12.         end
  13.         else if(shift_ena==1'b1 && cnt==3'd3)begin
  14.             shift_ena<=1'b0;
  15.             cnt<='d0;
  16.         end
  17.         else begin
  18.             cnt<=cnt+1'b1;
  19.         end
  20.     end
  21.
  23. endmodule

 5. FSM: The complete FSM

You may wish to do FSM: Enable shift register and FSM: Sequence recognizer first.

We want to create a timer that:

  1. is started when a particular pattern (1101) is detected,
  2. shifts in 4 more bits to determine the duration to delay,
  3. waits for the counters to finish counting, and
  4. notifies the user and waits for the user to acknowledge the timer.

In this problem, implement just the finite-state machine that controls the timer. The data path (counters and some comparators) are not included here.

The serial data is available on the data input pin. When the pattern 1101 is received, the state machine must then assert output shift_ena for exactly 4 clock cycles.

After that, the state machine asserts its counting output to indicate it is waiting for the counters, and waits until input done_counting is high.

At that point, the state machine must assert done to notify the user the timer has timed out, and waits until input ack is 1 before being reset to look for the next occurrence of the start sequence (1101).

The state machine should reset into a state where it begins searching for the input sequence 1101.

Here is an example of the expected inputs and outputs. The 'x' states may be slightly confusing to read. They indicate that the FSM should not care about that particular input signal in that cycle. For example, once a 1101 pattern is detected, the FSM no longer looks at the data input until it resumes searching after everything else is done.

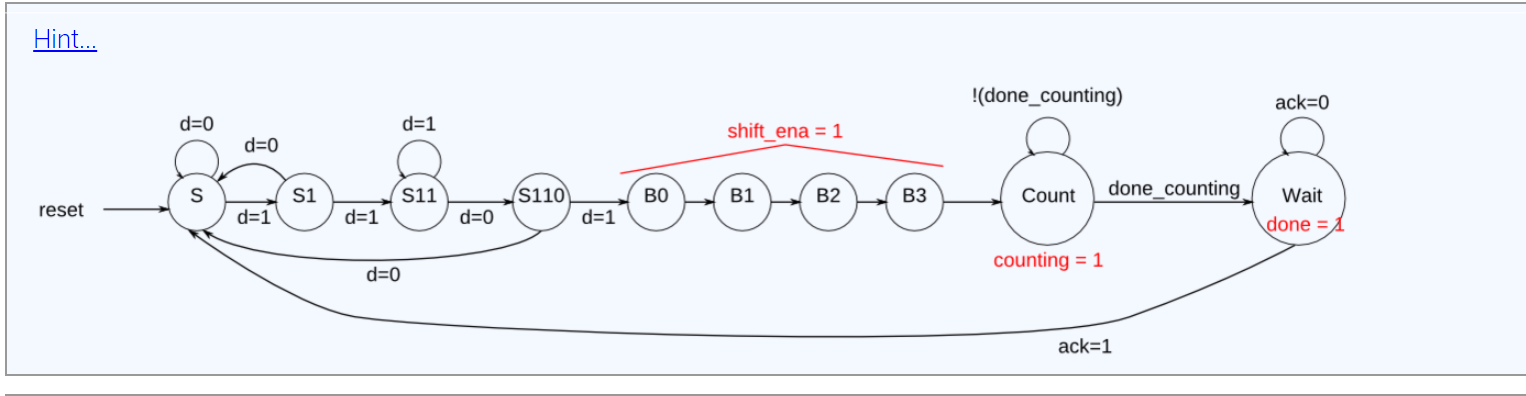

状态转移图：

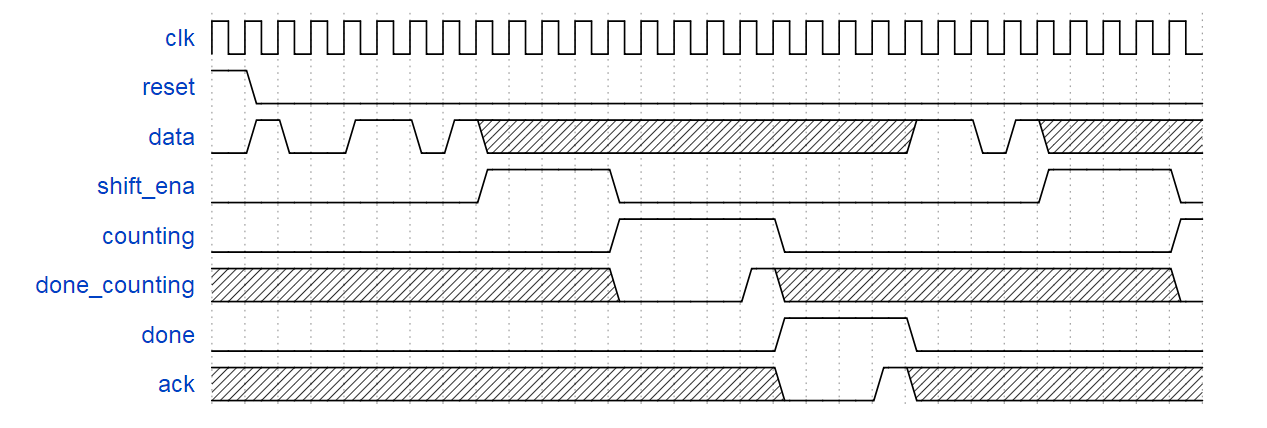

 参考时序图：

  1. module top_module (
  2.     input clk,
  3.     input reset,      // Synchronous reset
  4.     input data,
  5.     output shift_ena,
  6.     output counting,
  7.     input done_counting,
  8.     output done,
  9.     input ack );
  10.     parameter S=0,S1=1,S11=2,S110=3;
  11.     parameter B0=4,B1=5,B2=6,B3=7,COUNT=8,WAIT=9;
  12.     reg [3:0] state,next_state;
  13.     reg [3:0]cnt;
  14.
  15.     always @(*)begin
  16.         case(state)
  17.             S:begin
  18.                 if(data) next_state=S1;
  19.                 else next_state=S;
  20.             end
  21.             S1:begin
  22.                 if(data) next_state=S11;
  23.                 else next_state=S;
  24.             end
  25.             S11:begin
  26.                  if(data) next_state=S11;
  27.                 else next_state=S110;
  28.             end
  29.             S110:begin
  30.                 if(data) next_state=B0;
  31.                 else next_state=S;
  32.             end
  33.            B0:begin
  34.                next_state=B1;
  35.            end
  36.            B1:begin
  37.                next_state=B2;
  38.            end
  39.            B2:begin
  40.                next_state=B3;
  41.            end
  42.            B3:begin
  43.                next_state=COUNT;
  44.            end
  45.            COUNT:begin
  46.                if(done_counting) next_state=WAIT;
  47.                else next_state=COUNT;
  48.            end
  49.           WAIT:begin
  50.                 if(ack)next_state=S;
  51.                 else next_state=WAIT;
  52.             end
  53.            default:begin
  54.                 next_state=S;
  55.             end
  56.         endcase
  57.     end
  58.
  59.     always @(posedge clk)begin
  60.         if(reset) state<=S;
  61.         else state<=next_state;
  62.     end
  63.
  64.
  65.     assign shift_ena=(state==B0|state==B1|state==B2|state==B3);
  66.     assign counting=(state==COUNT);
  67.     assign done=(state==WAIT);
  68.
  69.
  70. endmodule

6. The complete timer

We want to create a timer with one input that:

  1. is started when a particular input pattern (1101) is detected,
  2. shifts in 4 more bits to determine the duration to delay,
  3. waits for the counters to finish counting, and
  4. notifies the user and waits for the user to acknowledge the timer.

The serial data is available on the data input pin. When the pattern 1101 is received, the circuit must then shift in the next 4 bits, most-significant-bit first. These 4 bits determine the duration of the timer delay. I'll refer to this as the delay[3:0].

After that, the state machine asserts its counting output to indicate it is counting. The state machine must count for exactly (delay[3:0] + 1) * 1000 clock cycles. e.g., delay=0 means count 1000 cycles, and delay=5 means count 6000 cycles. Also output the current remaining time. This should be equal to delay for 1000 cycles, then delay-1 for 1000 cycles, and so on until it is 0 for 1000 cycles. When the circuit isn't counting, the count[3:0] output is don't-care (whatever value is convenient for you to implement).

At that point, the circuit must assert done to notify the user the timer has timed out, and waits until input ack is 1 before being reset to look for the next occurrence of the start sequence (1101).

The circuit should reset into a state where it begins searching for the input sequence 1101.

Here is an example of the expected inputs and outputs. The 'x' states may be slightly confusing to read. They indicate that the FSM should not care about that particular input signal in that cycle. For example, once the 1101 and delay[3:0] have been read, the circuit no longer looks at the data input until it resumes searching after everything else is done. In this example, the circuit counts for 2000 clock cycles because the delay[3:0] value was 4'b0001. The last few cycles starts another count with delay[3:0] = 4'b1110, which will count for 15000 cycles.

在上题的基础上增加了计数时间数据的接收和计算，并检测计数结束信号触发状态转移。

  1. module top_module (
  2.     input clk,
  3.     input reset,      // Synchronous reset
  4.     input data,
  5.     output [3:0] count,
  6.     output counting,
  7.     output done,
  8.     input ack );
  9.
  10.
  11.     parameter S=0,S1=1,S11=2,S110=3;
  12.     parameter B0=4,B1=5,B2=6,B3=7,COUNT=8,WAIT=9;
  13.     reg [3:0] state,next_state;
  14.     reg [3:0] delay;
  15.     reg [13:0]cnt_delay;
  16.     reg          done_counting=0;
  17.
  18.     //状态机
  19.     always @(*)begin
  20.         case(state)
  21.             S:begin
  22.                 if(data) next_state=S1;
  23.                 else next_state=S;
  24.             end
  25.             S1:begin
  26.                 if(data) next_state=S11;
  27.                 else next_state=S;
  28.             end
  29.             S11:begin
  30.                  if(data) next_state=S11;
  31.                 else next_state=S110;
  32.             end
  33.             S110:begin
  34.                 if(data) next_state=B0;
  35.                 else next_state=S;
  36.             end
  37.            B0:begin
  38.                next_state=B1;
  39.            end
  40.            B1:begin
  41.                next_state=B2;
  42.            end
  43.            B2:begin
  44.                next_state=B3;
  45.            end
  46.            B3:begin
  47.                next_state=COUNT;
  48.            end
  49.            COUNT:begin
  50.                if(done_counting) next_state=WAIT;
  51.                else next_state=COUNT;
  52.            end
  53.           WAIT:begin
  54.                 if(ack)next_state=S;
  55.                 else next_state=WAIT;
  56.             end
  57.            default:begin
  58.                 next_state=S;
  59.             end
  60.         endcase
  61.     end
  62.     always @(posedge clk)begin
  63.         if(reset) state<=S;
  64.         else state<=next_state;
  65.     end
  66.
  67.     //延时数据接收并存储
  68.     always@(posedge clk)begin
  69.         if(reset) delay<='d0;
  70.         else begin
  71.             case(state)
  72.                 B0:begin
  73.                     delay[3]<=data;
  74.                 end
  75.                 B1:begin
  76.                     delay[2]<=data;
  77.                 end
  78.                 B2:begin
  79.                     delay[1]<=data;
  80.                 end
  81.                 B3:begin
  82.                     delay[0]<=data;
  83.                 end
  84.                 default:begin
  85.                     delay<=delay;
  86.                 end
  87.             endcase
  88.         end
  89.     end
  90.     //done_counting==1'b1的条件
  91.     always @(posedge clk)begin
  92.         if(reset)begin
  93.             cnt_delay<='d0;
  94.         end
  95.         else begin
  96.             case(state)
  97.                 COUNT:begin
  98.                     cnt_delay<=cnt_delay+1'b1;
  99.                 end
  100.                 default:begin
  101.                     cnt_delay<='d0;
  102.                 end
  103.             endcase
  104.         end
  105.     end
  106.     assign done_counting = (cnt_delay == (delay + 1) * 1000 - 1);
  107.
  108.     //out signals
  109.     assign count = delay-cnt_delay/1000;
  110.     assign counting=(state==COUNT);
  111.     assign done=(state==WAIT);
  112. endmodule

7. FSM: One-hot logic equations

Given the following state machine with 3 inputs, 3 outputs, and 10 states:

 Derive next-state logic equations and output logic equations by inspection assuming the following one-hot encoding is used: (S, S1, S11, S110, B0, B1, B2, B3, Count, Wait) = (10'b0000000001, 10'b0000000010, 10'b0000000100, ... , 10'b1000000000)

Derive state transition and output logic equations by inspection assuming a one-hot encoding. Implement only the state transition logic and output logic (the combinational logic portion) for this state machine. (The testbench will test with non-one hot inputs to make sure you're not trying to do something more complicated).

Write code that generates the following equations:

  • B3_next -- next-state logic for state B1
  • S_next
  • S1_next
  • Count_next
  • Wait_next
  • done -- output logic
  • counting
  • shift_ena

根据状态转移的结果进行反推由来过程。

  1. module top_module(
  2.     input d,
  3.     input done_counting,
  4.     input ack,
  5.     input [9:0] state,    // 10-bit one-hot current state
  6.     output B3_next,
  7.     output S_next,
  8.     output S1_next,
  9.     output Count_next,
  10.     output Wait_next,
  11.     output done,
  12.     output counting,
  13.     output shift_ena
  14. ); //
  15.
  16.     // You may use these parameters to access state bits using e.g., state[B2] instead of state[6].
  17.     parameter S=0, S1=1, S11=2, S110=3, B0=4, B1=5, B2=6, B3=7, Count=8, Wait=9;
  18.
  19.     assign B3_next =state[B2];
  20.     assign S_next =(~d&&state[S])|(~d&&state[S1])|(~d&&state[S110])|(ack&&state[Wait]);
  21.     assign S1_next=d&&state[S];
  22.     assign Count_next=state[B3]|(state[Count]&&~done_counting);
  23.     assign Wait_next=(state[Count]&&done_counting)|(~ack&&state[Wait]);
  24.     assign done=state[Wait];
  25.     assign counting=state[Count];
  26.     assign shift_ena=state[B0]|state[B1]|state[B2]|state[B3];
  27.
  28. endmodule
